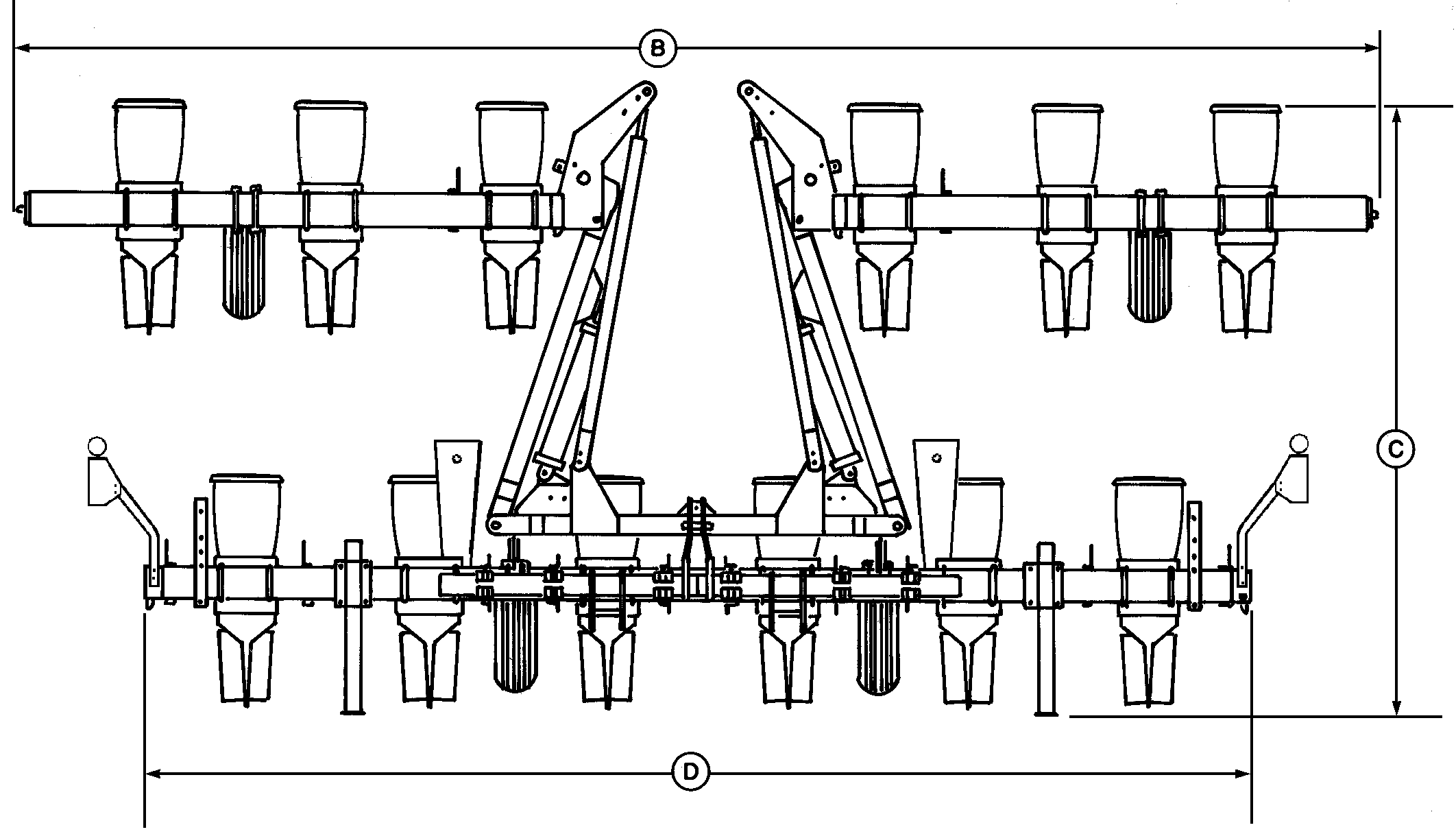

1720 Machines
A44799-UN-07APR98
|
Machine |
Row Spacing |
Dimension "B" |
Dimension "C" (with out Markers)1 |
Dimension "D" |
|---|---|---|---|---|
|
12-Row |
91 cm (36 in.) |
6.1 m (19 ft 10 in.) |
4.1 m (13 ft 5 in.) |
5.9 m (19 ft 6 in.) |
|
12-Row |
96 to 102 cm (38 to 40 in.) |
7.2 m (23 ft 8 in.) |
4.1 m (13 ft 5 in.) |
6.3 m (20 ft 8 in.) |
CAUTION: Serious injury or death can result from contact with
electric lines. Use care when moving or operating this machine near
electric lines to avoid contact.
|
1 On 4960
Tractors with 18.4R-46 rear tires with hitch pin 1118 mm 44 inches
off ground.
|
OUO6435,0001E21-19-20050927 |
