1720 Machines

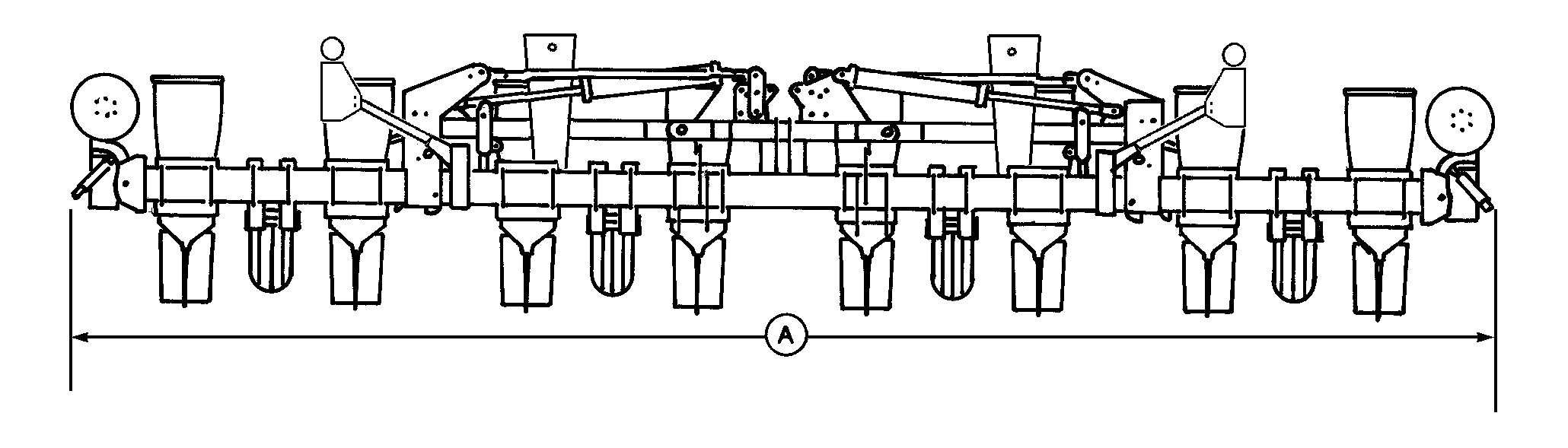

A44798-UN-07APR98

Machine	Row Spacing	Dimension “A”
8-Row	91 cm (36 in.)	7.6 m (25 ft 1 in.)
8-Row	96 to 102 cm (38 to 40 in.)	8.4 m (27 ft 5 in.)
10-Row	91 cm (36 in.)*	9.2 m (30 ft 3 in.)
10-Row	96 to 102 cm (38 to 40 in.)*	10.5 m (34 ft 5 in.)
12-Row	76 cm (30 in.)	9.6 m (31 ft 7 in.)
12-Row	91 cm (36 in.)*	10.7 m (35 ft 8 in.)
12-Row	96 to 102 cm (38 to 40 in.)*	11.2 m (39 ft 3 in.)
16-Row	76 cm (30 in.)	13.4 m (43 ft 11 in.)

* = Without Markers

CAUTION: Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

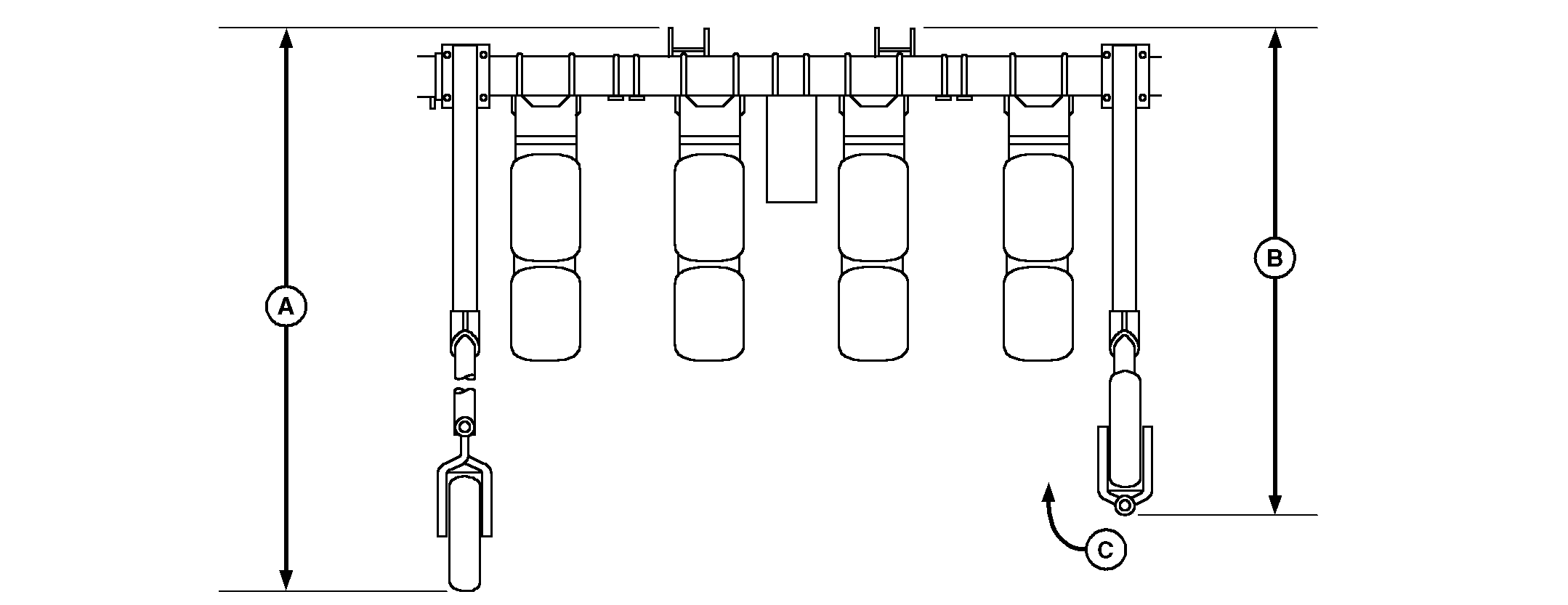

A57828-UN-21APR06

A - 3.4 m (133 in.)

B - 2.7 m (105 in.)

C - Caster Wheel Rotated Forward
