1720 Machines

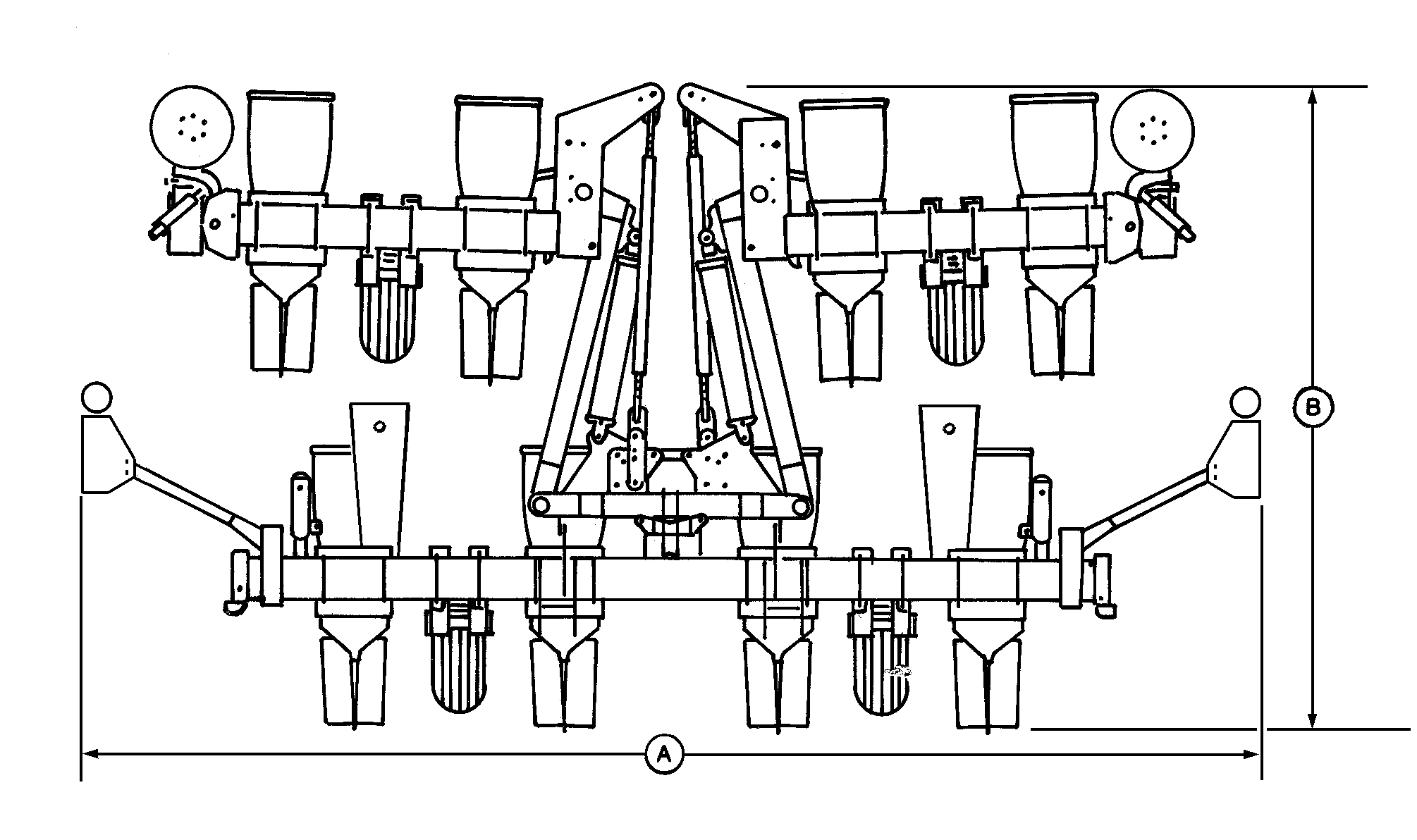

A44797-UN-07APR98
|
Machine |
Row Spacing |
Dimension "A" With Markers1 |
Dimension "B" |
|---|---|---|---|
|
8-Row |
91 cm (36 in.) |
5.1 m (16 ft 10 in.) |
3.4 m (11 ft 2 in.) |
CAUTION: Serious injury or death can result from contact with
electric lines. Use care when moving or operating this machine near
electric lines to avoid contact.

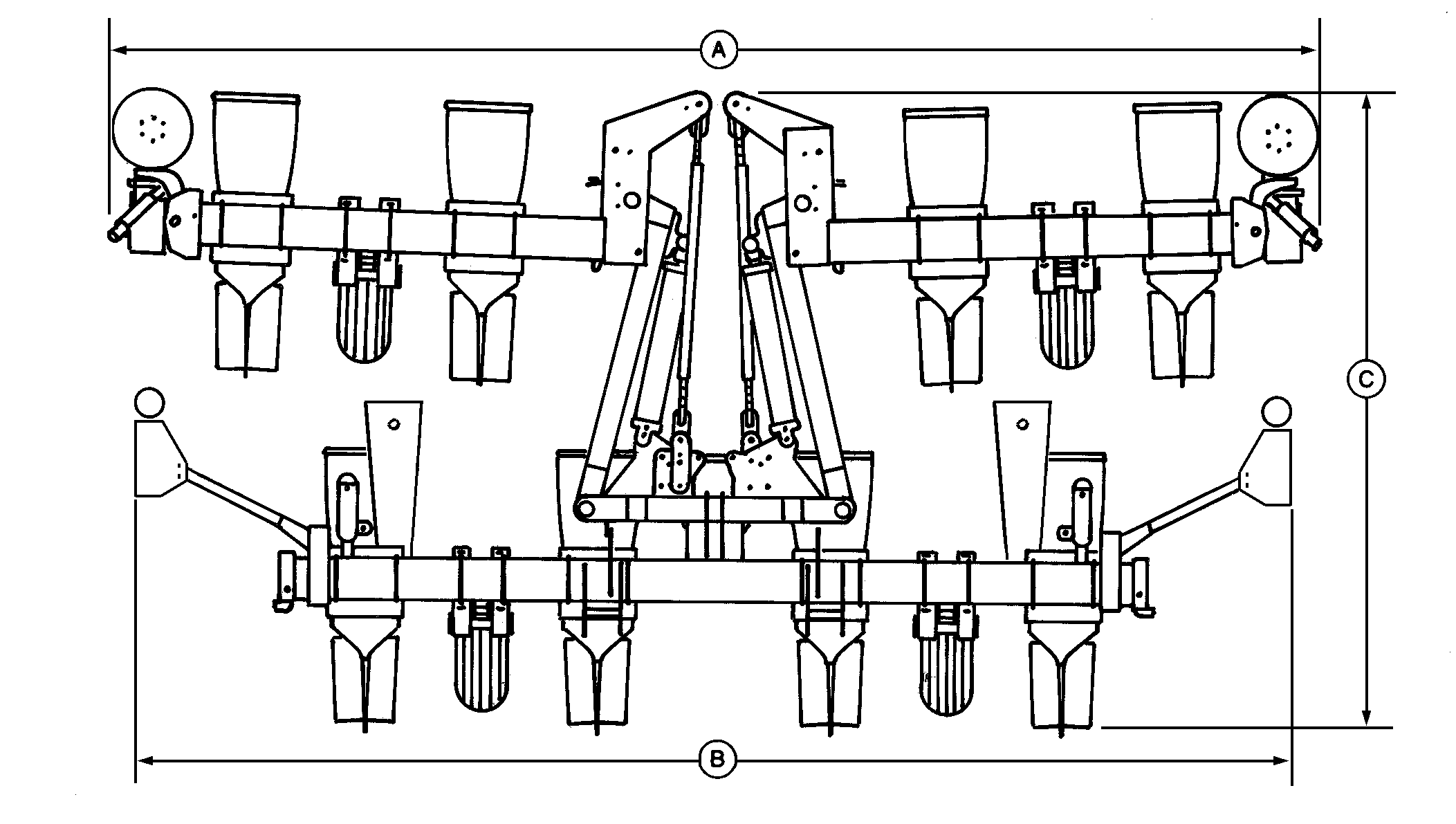

A44796-UN-07APR98
|
Machine |
Row Spacing |
Dimension "A" With Markers1 |
Dimension "B" |
Dimension "C" |
|---|---|---|---|---|
|
8-Row |
96 to 102 cm (38 to 40 in.) |
5.3 m (17 ft 6 in.) |
5.1 m (16 ft 10 in.) |
3.4 m (11 ft 2 in.) |
CAUTION: Serious injury or death can result from contact with
electric lines. Use care when moving or operating this machine near
electric lines to avoid contact.
|
1 On 4960
Tractors with 18.4R-46 rear tires with hitch pin 1067 mm (42 in.)
off ground.
|
OUO6435,0001E23-19-20050927 |
