Drag Closing Attachment

Adjustment Procedure

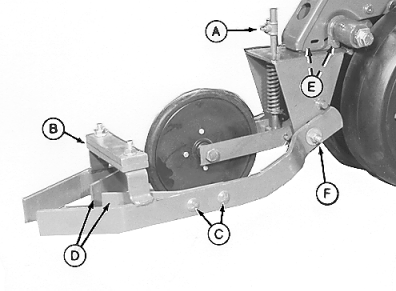

A44858-UN-21APR98

A - Set Screw

B - Weight

C - Carriage Bolts

D - Inner Drags

E - Cap Screws

F - Nut

The drag closing system is supplied with two weights (B). If required, more weight may be added by removing cap screws and attaching a third weight under the cross strap and securing with longer cap screws. See your John Deere dealer.

To increases or decreases the amount of soil movement, adjust inner drags. Loosen carriage bolts (C) and slide inner drags (D) up or down. Tighten carriage bolts.

To center drag assembly over the row, loosen cap screws (E), reposition drag assembly and tighten bolts.

Loosen nut (F) and adjust the cap screw up or down to compensate for changes in planting depths and level drags on the ground.
