Check Implement Width in Performance Monitor

A59325-UN-19FEB07

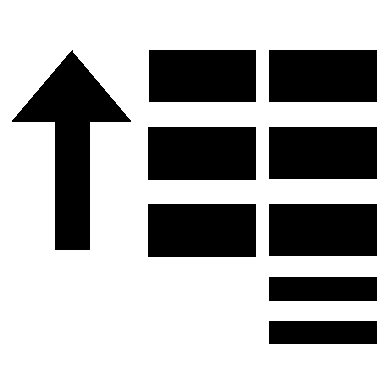

Menu

A59552-UN-08MAR07

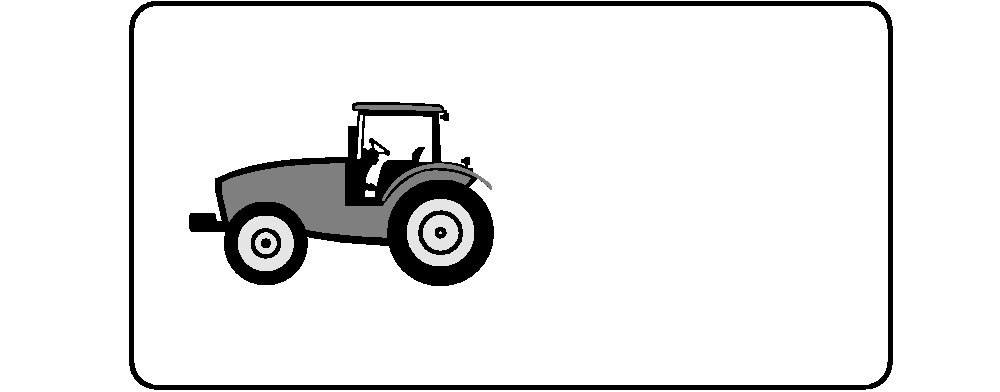

Performance Monitor Button

A59377-UN-23FEB07

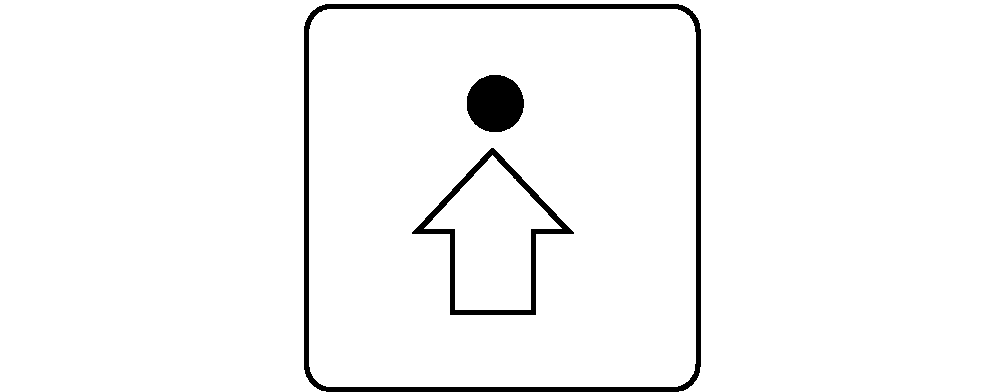

Settings Softkey

A59378-UN-22FEB07

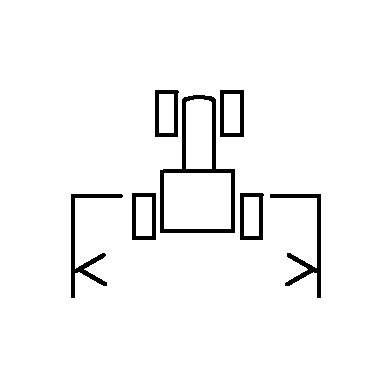

Implement Width

Implement width appears next to implement width icon.

The Performance Monitor can operate in two modes on the GreenStar™ Display. Basic Performance Monitor mode (BPM) is included in base equipment with every GreenStar™ Display. Advanced Performance Monitor (APM) is a tractor application and is only available when connected to specific John Deere Vehicles.

John Deere 7000, 7010, 8000, 8010, 8020, 9000, and 9020 series tractors operate in Basic Performance Monitor mode.

Implement width is sent to the Basic Performance Monitor by the planter and cannot be changed as long as the planter is connected to the tractor.

IMPORTANT: If implement width is changed in the tool application, (for example when changing from corn to soybeans on a split row planter), cycle power to the display for new settings to take effect.

Adavanced Performance Monitor is available on John Deere 6020, 6030, 7020, 7030, 8030, 8R, and 9030 series tractors.

Refer to your GreenStar Display Operator's Manual for more information.
