Clean or Replace Hydraulic Air Compressor Filter

CAUTION: Deactivate SCV operating hydraulic compressor and turn tractor off before servicing.

1. IMPORTANT: Filter cleanliness is critical to maintain the performance and service life of the air compressor. Clean air filter element every 50 hours. Replace the air filter element every 100 hours or at the beginning of each season.


   A72543-UN-14SEP11


   A72544-UN-14SEP11

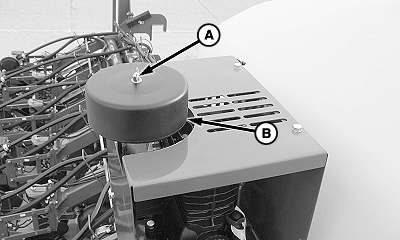

   A - Wing Nut and Seal Washer

   B - Weather Shield

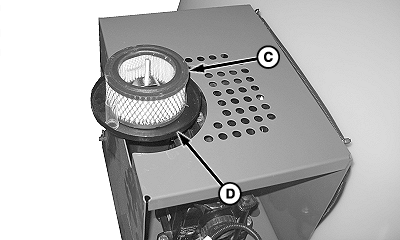

   C - Filter Element

   D - Filter Base

   Remove and retain wing nut and seal washer (A).

---




2. Remove and retain weather shield (B).

3. Remove filter element (C).

4. IMPORTANT: Clean all excess material from filter base (D) before installing filter.

   Install cleaned or new filter.

5. Install previously remove weather shield, wing nut, and seal washer. Tighten wing nut.
