Headland Warning Suppression

A59588
A59588-UN-12MAR07

A72705
A72705-UN-20SEP11

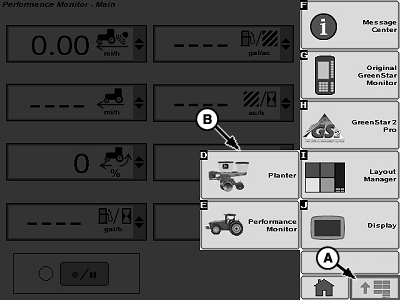

A - Menu Button

B - Planter Button

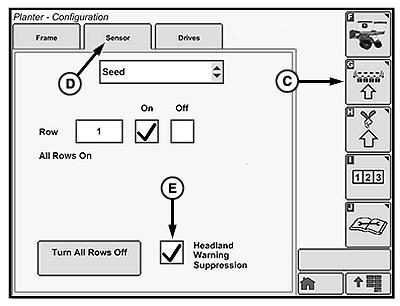

C - Configure Softkey

D - Sensor Tab

E - Box

Headland Warning Suppression ONLY suppresses the Rows Not Planting warnings when the height sensor or switch indicates that the planter frame is raised. It does not disable any other planter warnings.

To enable Headland Warning Suppression:

Select Menu >> Planter button >> Configure softkey >> Sensor tab

Place a check mark in Headland Warning Suppression box (E).

Remove check mark from box to disable Headland Warning Suppression.

On Ground Driven planters without RowCommand™, a height sensor MUST be installed and calibrated for Headland Warning Suppression to function. See your John Deere dealer.

Planters equipped with Variable Rate Drive and ground driven planters equipped with RowCommand™ have a height sensor installed.

Screen Area Information

Planter Configuration - Planter Configuration
Frame - Frame
Sensor - Sensor
Drives - Drives
Seed - Seed
Row - Row
On - On
Off - Off
All Rows On - All Rows On
Turn All Rows Off - Turn All Rows Off
Headland Warning Suppression - Headland Warning Suppression

OUO6064,00005F6-19-20111110
