Installing Meter Door Assembly

  1. A49500
    A49500-UN-11DEC02

    A56398
    A56398-UN-02JUN05

    A - Nut

    B - L-Bolt

    C - Lock Nuts

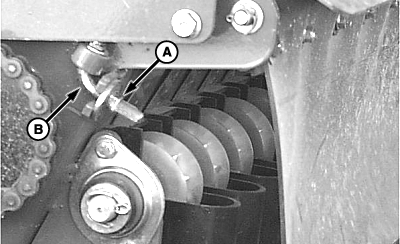

    Install meter door assembly.


  2. IMPORTANT: Drive sprockets wear and bind when meter door assembly is not tight against meter box.

    Swing in L-bolts (B) and tighten nuts (A) until door is firm against meter box.

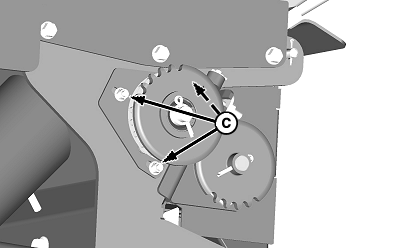

  3. Loosen locknuts (C) and shift agitator sprocket as necessary to engage meter sprocket.
