Checking Solenoids

A47983-UN-14SEP01

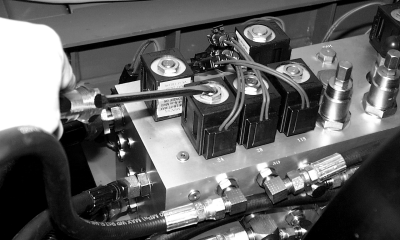

Place a small steel screwdriver close to the solenoid stud. If the coil is drawing current, a slight pull can be felt on the screwdriver when the proper switch is activated on control console.

If no magnetic pull is felt, see your John Deere dealer.
