Adjust Closing Wheel Spacing
NOTE: Spacing between closing wheels is adjustable, so closing system can be tailored to meet the requirements of planting small seeds at shallow depths.

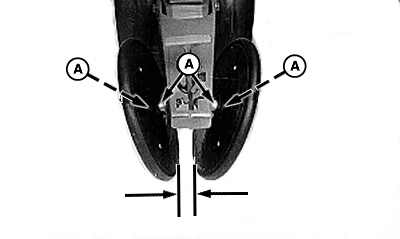

A46774-UN-13OCT00

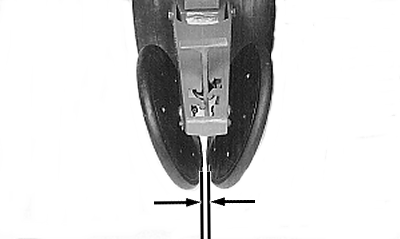

A46775-UN-12OCT00
A - Nuts and Spacers
To change spacing, remove nuts and spacers (A). Install closing wheels with spacers located to the outside (for narrow spacing) or to the inside (for wide spacing).|
AG,OUO6074,1205-19-20070808 |
