Detach Machine from Tractor

1.
   A52674-UN-26AUG03

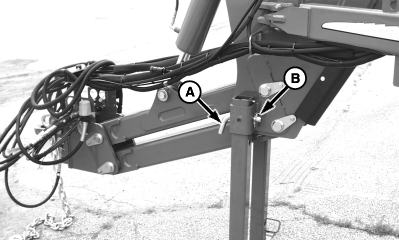

   Two Point Hitch Stands


   A78933-UN-21OCT13

   Drawbar Hitch Stands

   A - Drilled Pin (2 used)

   B - Spring Locking Pin (2 used)

   Raise hitch enough to lower stands to storage position.

---




2. Remove spring lock pins (B) and drilled pins (A) and lower hitch stands.

3. NOTE: Handle of pin (A) is positioned toward tractor.

   Install drilled pins (A) and spring locking pins (B).

4. CAUTION: Avoid injury from hydraulic oil injection. Relieve hydraulic system pressure before disconnecting hoses.

   NOTE: Not necessary to turn off tractor when detaching machine from John Deere Tractors with ISO couplers.

   Lower machine onto ground or onto service locks. See LOWER-RAISE MACHINE IN TRANSPORT POSITION FOR FILL OR SERVICE in Service and Adjustments section.

5. Refer to tractor Operator's Manual for SCV operation.

6. Place SCV levers in “Float” position and frame control switch in “Plant” position. Place drawbar control switch in “Hitch” position, if equipped.

7. Depress all remaining frame control switches in both directions.

8. Place frame control switch in “Trans” position.

9. Depress all remaining frame control switches in both directions.

10. Turn tractor key switch off.

11.
    A52426-UN-10JUL03

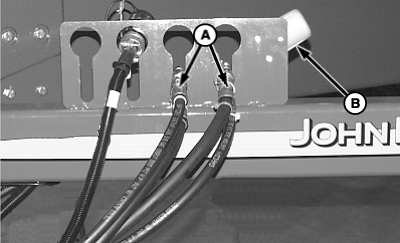

    A - Hoses, Hydraulic

    B - Connector, 7-Pin

    Disconnect all hydraulic hoses (A) and 7-pin connector (B). Place hoses and harness into holding bracket as illustrated.

---




12. Disconnect monitor and frame control harnesses.

13. Disconnect liquid herbicide hoses (if equipped).

14. On Drawbar Hitch Machines: Remove hitch pin.

15. On Two Point Hitch Machines: Raise handles on tractor Quik Tach™ and lower the tractor rockshaft until the Quik Tach™ is below the machine hitch pins.

16. Drive tractor away slowly.
