Disk Closing Attachment

1.

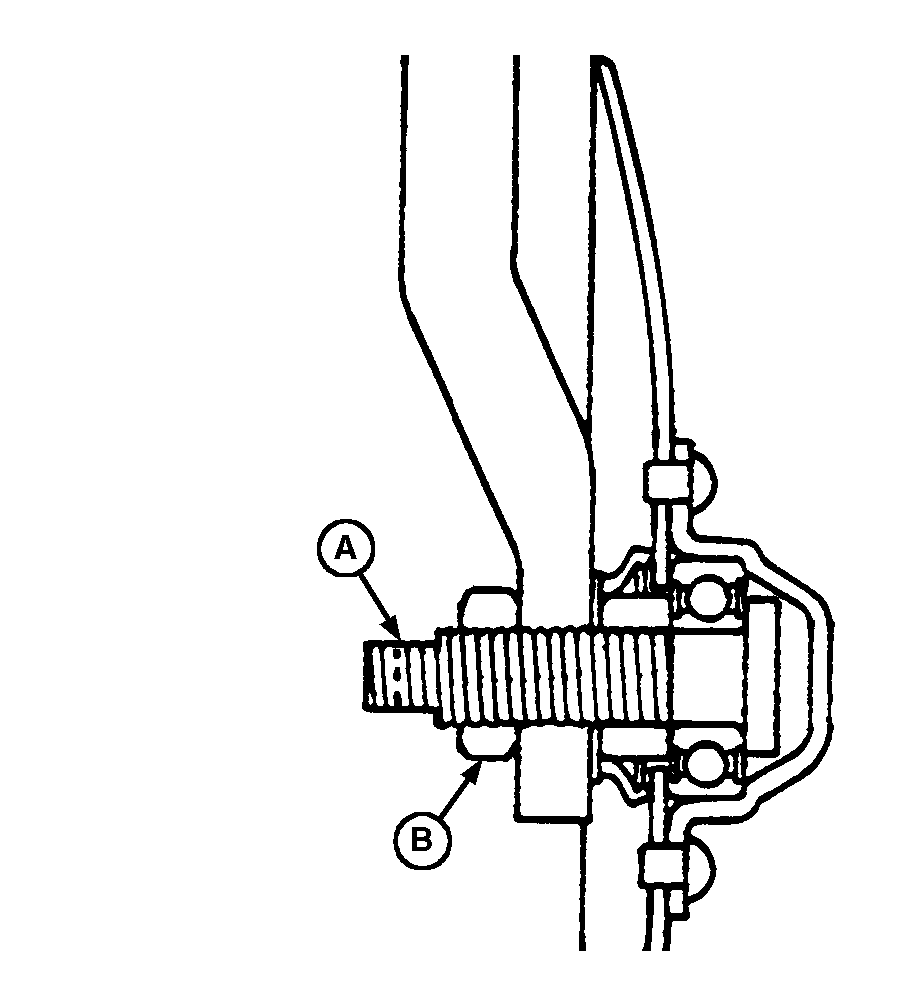

   A47137-UN-01MAR01

   A - Disk Bearing Bolt

   B - Jam Nut

   Loosen jam nut (B).

---




2. Place wrench on flat surfaces of disk bearing bolt (A) and tighten bolt to specification.

   Item	Measurement	Specification
   Bearing Bolt	Torque	203 N·m (150 lb.-ft.)

3. Place wrench on flat surfaces of disk bearing bolt to maintain proper torque adjustment of the bolt and tighten jam nut to specification.

   Item	Measurement	Specification
   Jam Nut	Torque	203 N·m (150 lb.-ft.)
