Clean Out CCS Tanks

1. IMPORTANT: When cleaning tank for certified seed, remove all seed from tank with stiff bristled 1372 mm (4.5 ft.) handle 203 mm (8 in.) wide broom.

   IMPORTANT: Remove any buildup of seed treatment or talc before refilling tanks.

   IMPORTANT: Verify cleanout doors on CCS tanks are closed before folding machine or they can be damaged.


   A52502-UN-30JUL03


   A49926-UN-20AUG02

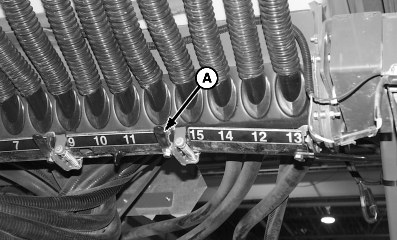

   A - Cleanout Door

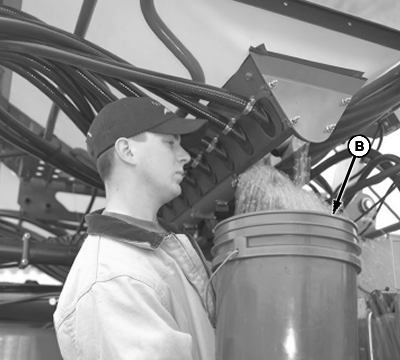

   B - Bucket

   Open cleanout door (A) on bottom of CCS tank.

---




2. Place a bucket (B) or container under cleanout door to catch remaining seed from tank.

3. NOTE: Once cleanout doors (A) are open they cannot be closed completely until seed stops flowing.

   Close cleanout door.

4. Repeat for all other cleanout doors.
