Replace Double Disk Fertilizer Opener Bearing

  1. A44323
    A44323-UN-05DEC97

    A - Nut

    Support machine safely. (See procedure at the beginning of this section.)

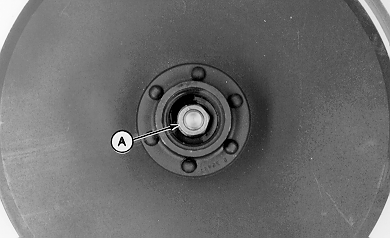

  2. Remove dust cap and nut (A).

  3. Remove disk.

  4. A44324
    A44324-UN-05DEC97

    A - Rivet (6 used)

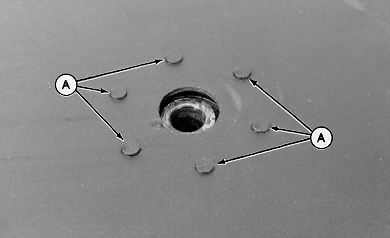

    Grind off rivets (A).


  5. Drive rivets out and remove spacer and bearing housing from blade.

  6. A44325
    A44325-UN-05DEC97

    A - Bearing

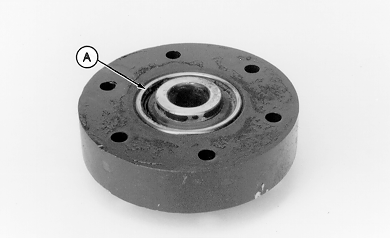

    Press bearing (A) from housing.


  7. Inspect housing, spacer, and disk blade. Replace parts as needed.

  8. IMPORTANT: Press only on outer race of bearing.

    A44326
    A44326-UN-05DEC97

    A - Bearing

    B - Housing

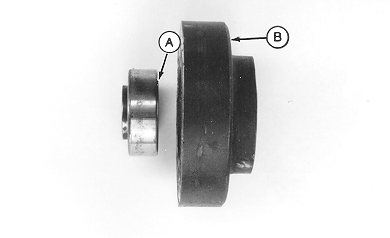

    Install bearing in housing with flat surface (A) facing housing (B).


  9. A44327
    A44327-UN-05DEC97

    A44328
    A44328-UN-05DEC97

    A - Housing

    B - Spacer

    C - Rivet (6 used)

    D - Rounded End of Rivet

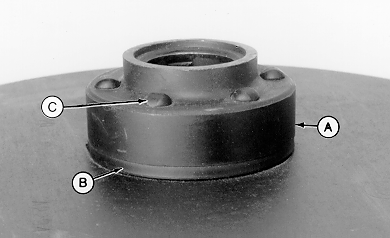

    Install housing (A) and spacer (B) on disk, while aligning rivet holes.


  10. Install rivets (C).

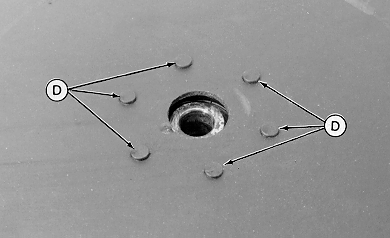

  11. Strike the end of rivets (D) with a hammer until rounded over to secure hub and spacer to disk.

  12. NOTE: See DISK ADJUSTMENT in this section, before installing disk on machine.

    Install disk on machine. (See INSPECT AND ADJUST OPENER BLADES in this section.)

  13. Remove support components.
