Fertilizer Distribution Tube

Replacing Worn or Damaged Distribution Tube

To replace worn or damaged distribution tubes complete the following procedures:

1.

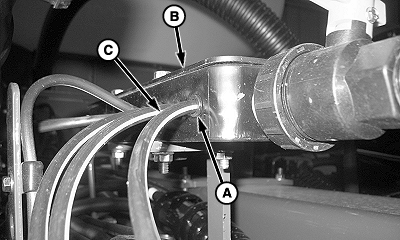

   A72199-UN-03AUG11

   A - Fitting Ring

   B - Manifold

   C - Tube

   Push in fitting ring (A) at manifold (B) and remove tube (C).

---




2.

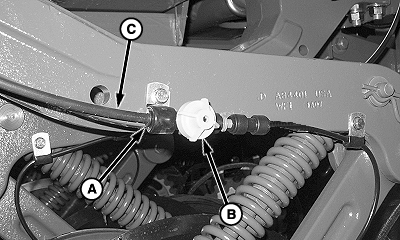

   A72737-UN-22SEP11

   A - Fitting Ring

   B - Check Valve

   C - Tube

   Push in fitting ring (A) at check valve (B) and remove tube (C).

---




3.

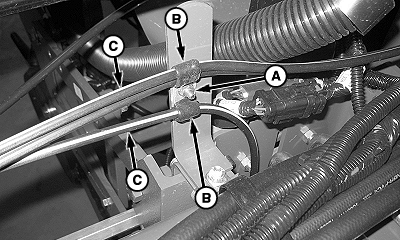

   A72201-UN-03AUG11

   A - Nut

   B - Hose Clamp

   C - Tube

   Loosen nuts (A) on all hose clamps (B) at all locations for tube (C) being replaced.

---




4. Remove tube (C) from hose clamps (B).

5. Measure tube length before discarding.

6. NOTE: Add 25.4 mm (1 in.) to overall tube length for trimming and chamfering.

   Cut new tube to length.

7.

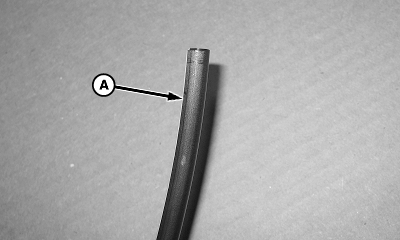

   A72202-UN-03AUG11

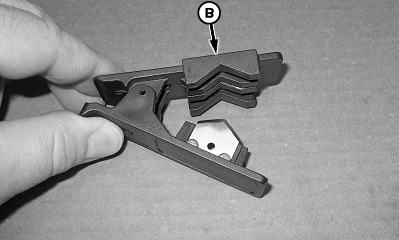

   A72204-UN-03AUG11

   A - Tube

   B - Tube Cutter

   Trim each end of tube (A) square with tube cutter (B) or similar device. Ensure that end of tubing is not crushed.

---




8.

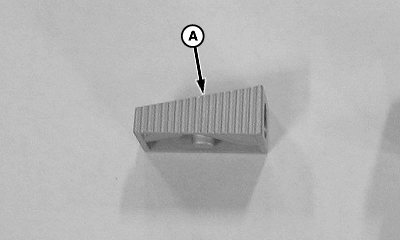

   A72205-UN-03AUG11

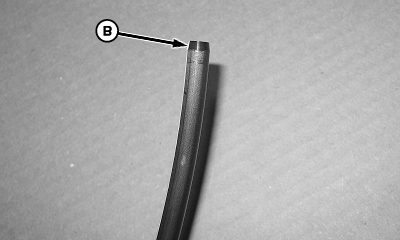

   A72203-UN-03AUG11

   A - Chamfer Tool

   B - Tube

   Using a chamfer tool (A) (a pencil sharpener works well), chamfer each end of tube (B).

---




9. Route tube from manifold to opener inserting tube in appropriate hose clamps.

10.
    A72206-UN-03AUG11

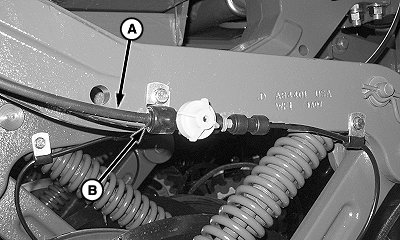

    A72738-UN-22SEP11

    A - Tube

    B - Fitting

    Push each end of tube (A) fully into fittings (B). Pull tube to ensure that it is locked into fitting.

---




11.

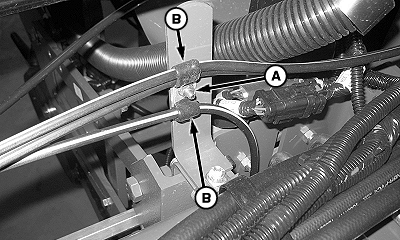

    A72208-UN-03AUG11

    A - Nut

    B - Hose Clamp

    Tighten nut (A) on hose clamps (B).

---




12. Prime system and check for leaks. (See PRIMING AND INITIAL STARTUP OF PUMP in System Overview section.)

Fix Distribution Tube Connection Leak

To fix a distribution tube connection leak complete the following procedures:

1.
   A72199-UN-03AUG11

   Distribution Manifold


   A72737-UN-22SEP11

   A - Fitting Ring

   B - Connection Points

   C - Tube

   Push in fitting ring (A) at connection points (B). and pull out tube (C).

---




2.
   A72202-UN-03AUG11


   A72204-UN-03AUG11

   A - Tube

   B - Tube Cutter

   Trim end of tube (A) square with tube cutter (B) or similar device. Ensure that end of tubing is not crushed.

---




3.
   A72205-UN-03AUG11


   A72203-UN-03AUG11

   A - Chamfer Tool

   B - Tube

   Using a chamfer tool (A) (a pencil sharpener works well), chamfer end of tube (B).

---




4.
   A72206-UN-03AUG11


   A72738-UN-22SEP11

   A - Tube

   B - Fitting

   Push end of tube (A) fully into fittings (B). Pull tube to ensure that it is locked into fitting.

---




5. Prime system and check for leak. (See PRIMING AND INITIAL STARTUP OF PUMP in System Overview section.)
