Adjust Marker Disk

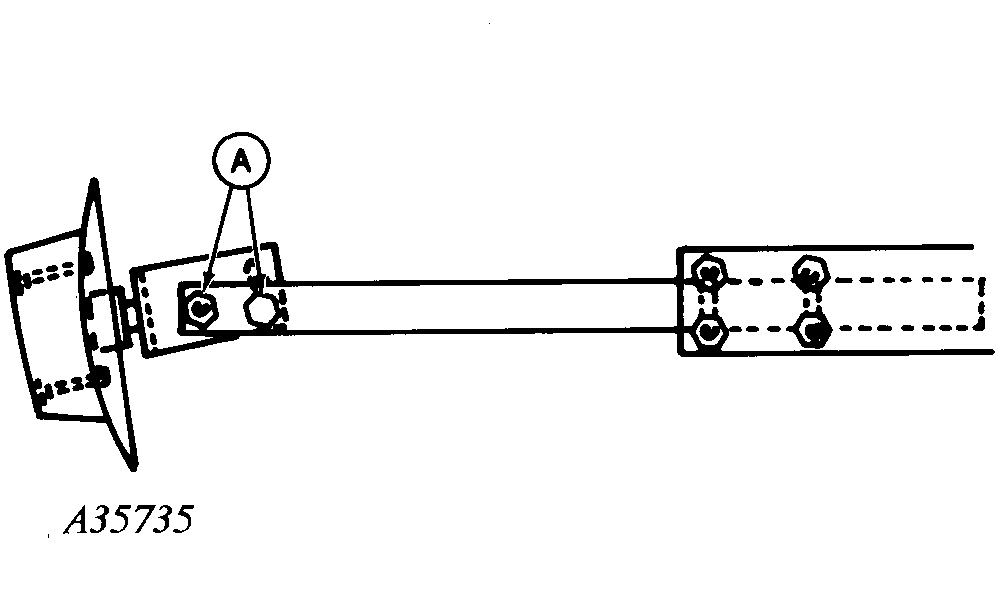

A35735-UN-06SEP94
A - Nut
The marker disk creates a furrow in the soil. This adjustment
changes the size of furrow.
Loosen nuts on cap screws (A), adjust disk angle and tighten
nuts to specification.
| Item | Measurement | Specification |
|
Cap Screw | Torque | 240 N˙m (175 lb.-ft.) |
|
|
OUO6074,0000813-19-20090521
|
|
