Adjust Wing Frame Height

1. IMPORTANT: Perform all frame height adjustments with machine on level ground.

   Center frame wheel pairs must be adjusted to the same settings.

   NOTE: Adjust frame 510—560 mm (20—22 in.) above the ground. Soil conditions can affect frame height. Wing wheels can be adjusted differently than the center frame wheels due to varying attachments and frame configurations.


   A47889-UN-05NOV01

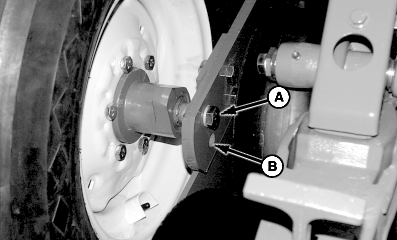

   Wing Wheel Shown

   A - Wheel Hub Location (Normal Conditions)

   B - Wheel Hub Location (Raise Frame)

   Fold machine. See FOLDING MACHINE in Operating Machine section.

---




2. Remove wheel hub bolts and position wheel hubs in location (A) for normal conditions or location (B) to raise frame two inches.

3. Tighten wheel hub cap screws to specification after making adjustments.

   Item	Measurement	Specification
   Wing Wheel Cap Screws	Torque	447 N·m (330 lb.-ft.)

4. Repeat for adjacent wheels.
