Adjust Demco™ Fixed Rate Pump Setting Number

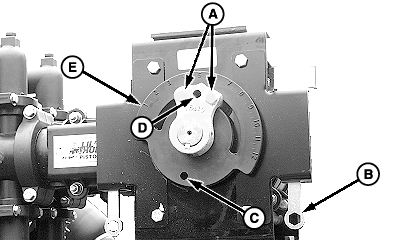

  1. A53333
    A53333-UN-17NOV03

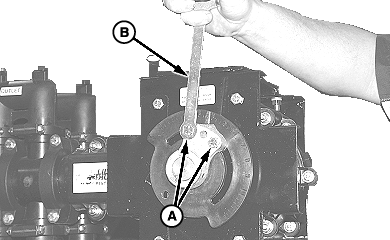

    A53134
    A53134-UN-17OCT03

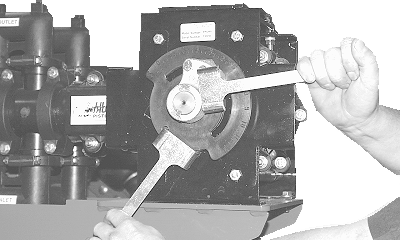

    A53135
    A53135-UN-17OCT03

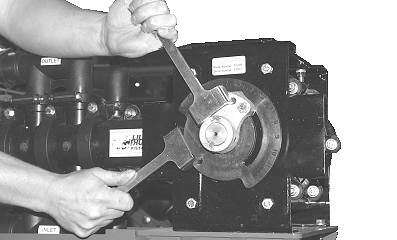

    A53136
    A53136-UN-17OCT03

    A - Bolts (2 used)

    B - Wrench

    C - Hole

    D - Hole

    E - Adjustment Disk

    Loosen bolts (A), using wrench (B).


  2. Insert one tab on wrench (B) into hole (C).

  3. Insert one tab of second wrench into hole (D).

  4. Turn adjustment disk (E) clockwise to desired setting, using second wrench.

  5. Tighten bolts (A).

OUO6074,0000E77-19-20090522
