Attach Two-Point Hitch Machine to Tractor

1. CAUTION: See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in Safety section before machine transport.


   A28093-UN-13OCT88

   Raise both latch control levers.

---




2.
   A47886-UN-31OCT01

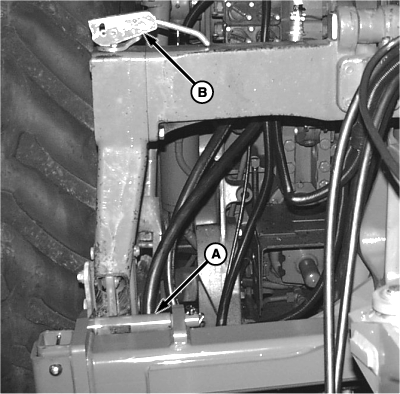

   A - Machine Hitch Pins

   B - Latch Control Levers

   Lower the rockshaft until the Quik Tach™ hooks are lower than the machine hitch pins and slowly back the tractor up to the machine.

---




3. CAUTION: When latches are properly locked, handles are horizontal and against coupler frame.

   Raise the rockshaft enough to engage the machine hitch pins (A) in the Quik Tach™ hooks. Push both latch control levers (B) down to lock the machine to quik tach.

4. After attaching machine to tractor, raise 3-point hitch.

5. IMPORTANT: Damage can occur to hitch stands and draft tubes while turning sharply. Remove hitch stands to avoid damage.

   NOTE: When installing drilled pin (A), handle of pin goes toward front of machine.


   A52674-UN-26AUG03

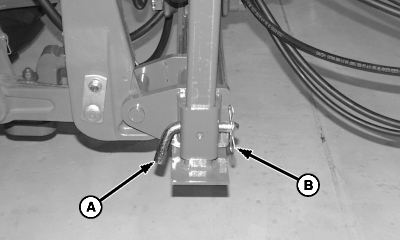

   A - Drilled Pin

   B - Spring Lock Pin

   Raise and secure stands to hitch crossbar with drilled pin (A) and spring locking pin (B).

---




6. IMPORTANT:


   A53393-UN-25NOV03

   Flush Face Fitting


   A53855-UN-19FEB04

   8000 Series Tractor Shown

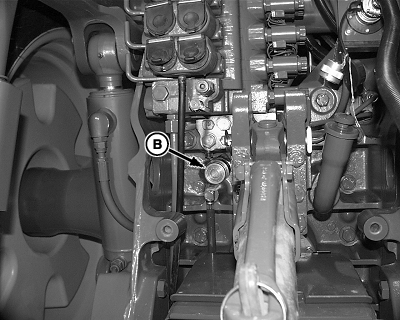

   A - Case Drain Hose

   B - Low-Pressure Drain Coupler

   Fan motor case drain hose must be attached to low-pressure drain connection before other hoses are connected. Case drain must have less than 172 kPa (1.72 bar) (25 psi) or fan motor damages occurs.

   IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not so equipped.

   IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports results in fan motor damage.

   Route case drain hose (A) under Quik Tach™ and attach to tractor low-pressure drain coupler (B).

---
