Adjust 24 Row Marker Length

A51116-UN-13NOV02

A52976-UN-01OCT03

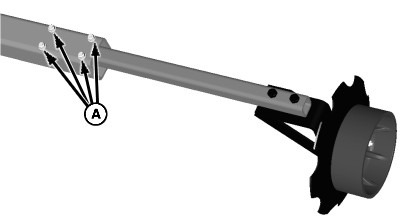

A - U-Bolts

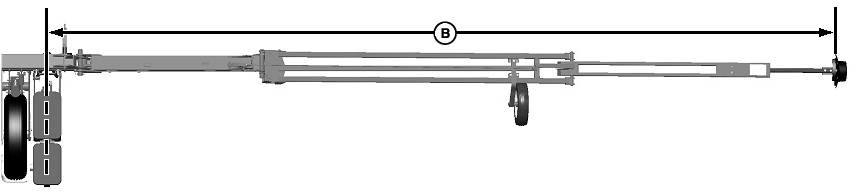

B - Dimension

1. Lower marker.

2. Loosen lock nuts on marker U-bolts (A). With the arm in the down position, adjust to length shown. Dimension (B) is measured from the center line of the planting unit to the marker disk. This is an approximate dimension and must be checked in the field.

   Machine	Row Spacing	Dimension “B”
   24-Row	762 mm (30 in.)	9525 mm (375 in.)

3. Tighten lock nuts (A) to specification.

   Item	Measurement	Specification
   Lock Nuts	Torque	50 N·m (37 lb.-ft.)
