Lower or Raise Machine in Transport Position For Fill or Service

1. NOTE: Directions for this procedure are also located on frame control harness decal. Decals are installed below frame control.

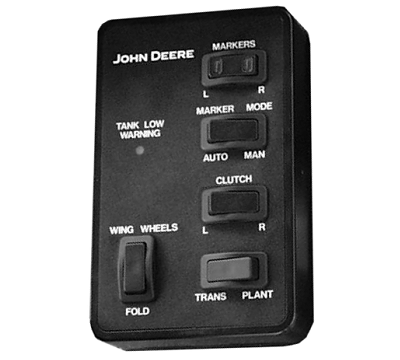

   A78930-UN-21OCT13

   12 and 16 Row Frame Control

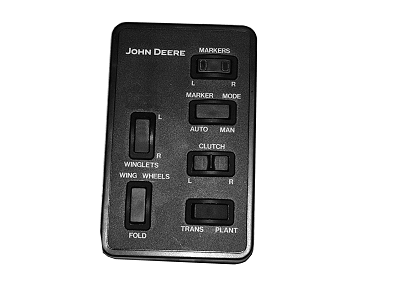

   A54115-UN-22MAR04

   24 Row Frame Control

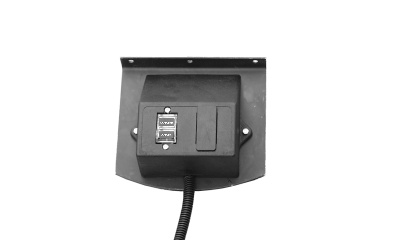

   A52390-UN-03JUL03

   Drawbar Hitch Control

   Press the PLANT—TRANS switch to “Trans” position.

---




2. Press and hold WING WHEEL—FOLD switch in the “Wing Wheel” position. Activate SCV to fully lower wing wheels. (Center frame wheels lower from high lift position.)

3. Press the PLANT—TRANS switch to “Plant” position.

4. IMPORTANT: To prevent damage to openers, lower or raise frame and hitch simultaneously to keep machine level.

   IMPORTANT: Avoid damage during folding. If wheel cylinders are out of phase, lower machine to cycle hydraulics.

   Lower frame and hitch simultaneously, keeping hitch level, until machine is lowered.

5. Fill or service machine.

6. With PLANT—TRANS switch in “Plant” position, raise frame and hitch simultaneously, keeping hitch level until machine is raised.

7. Press the PLANT—TRANS switch to “Trans” position.

8. Press and hold WING WHEELS switch while activating the SCV to raise wing wheels and allow main frame wheels to extend into high lift position.
