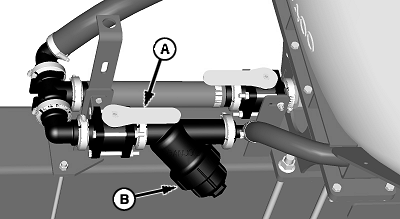

Clean Strainer Screen
A53422-UN-02DEC03
A - Shut-Off Valve
B - Cap
Check fertilizer strainer screen after initial start up of pump and daily thereafter. Clean when necessary. Close shut-off valve (A) and remove strainer cap (B) to check screen.|
OUO6435,0001F02-19-20070727 |
