Tighten 6 and 8 Bolt Wheel Hubs
IMPORTANT: Check torque on wheel bolts before operation, after initial 10 hours of use, then every 50 hours.

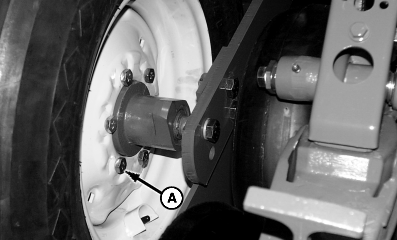

A47974-UN-14SEP01
A - Wheel Bolt
Tighten all wheel bolts (A) to specification.
| Item | Measurement | Specification |
| 9/16 in. Wheel Bolts | Torque | 176 N·m (130 lb.-ft.) |
| M16 Wheel Bolts | Torque | 350 N·m (258 lb.-ft.) |
|
Wheel Bolt Identification |
||
|
6-Bolt Hub |
8-Bolt Hub |
|
|
12 Row |
9/16 in. Wheel Bolts |
9/16 in. Wheel Bolts |
|
16 Row |
9/16 in. Wheel Bolts |
9/16 in. Wheel Bolts |
|
24 Row |
9/16 in. Wheel Bolts |
M16 Wheel Bolts |
|
OUO6435,0001F0E-19-20090522 |
