12 and 16 Row Marker Float Range

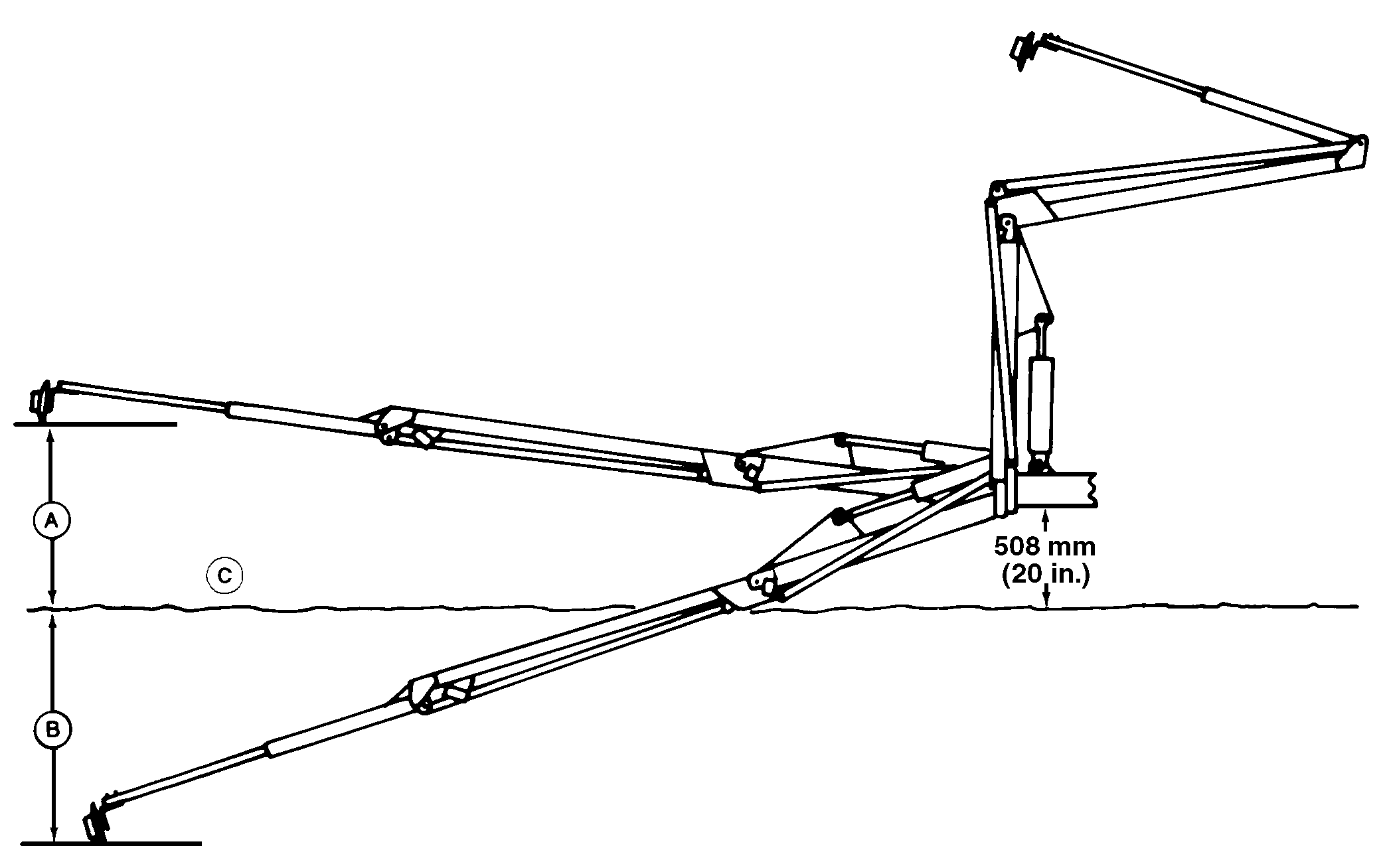

A55425-UN-22NOV04
A - Dimension A
B - Dimension B
C - Ground Line
The marker has an approximate float range (see table). Do not exceed float range when planting near en-even terrain, such as drainage ditches and hillsides.Exceeding this float range can result in damage to the inner marker arm.
Before the range is exceeded, activate hydraulics to raise the marker.
|
Machine |
Row Spacing |
Dimension “A” |
Dimension “B” |
|---|---|---|---|
|
12-Row |
76 cm (30 in.) |
1335 mm (52.5 in.) |
1335 mm (52.5 in.) |
|
16-Row |
76 cm (30 in.) |
1778 mm (70 in.) |
1778 mm (70 in.) |
|
