Vacuum Manifold Orifice Placement for Single Vacuum Machines—16 Row
IMPORTANT: Orifices are only needed on machines equipped with single vacuum systems.

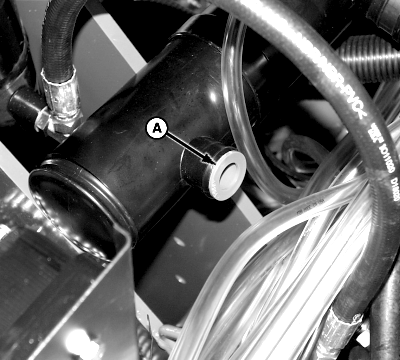

A49013-UN-04APR02
Vacuum Manifold Orifice
A - Orifice
Orifices (A) are installed in the vacuum tube manifold on rows 6, 7, 8, 9, 10, and 11. The orifices are color coded for a specific row. The following table illustrates which orifice color goes to what row.
|
Orifice Placement |
|
|---|---|
|
Row Numbers |
Orifice Color |
|
6 and 11 |
Yellow |
|
7 and 10 |
Green |
|
8 and 9 |
White |
|
