Frame Control Console

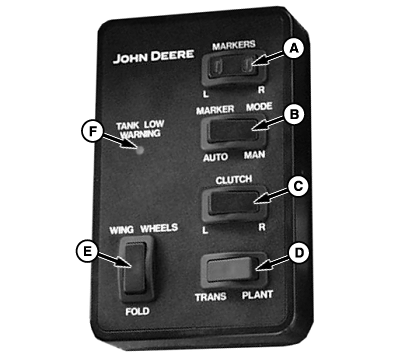

A78929-UN-21OCT13
12 and 16 Row Frame Control Console

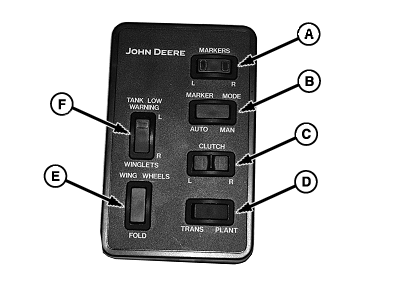

A52768-UN-28AUG03
24 Row Frame Control Console

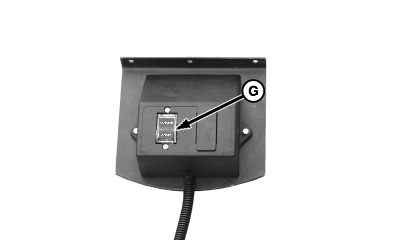

A52361-UN-24JUN03
12 and 16 Row Drawbar Hitch Control
Console switches operate solenoid hydraulic valves. These solenoid valves prevent a cylinder from operating unless valves are energized. All machine cylinders are connected to one tractor selective control valve. But only cylinders which have been selected with the frame control console switches can be controlled with tractor selective control valve. The function is selected with the switch and controlled with the tractor selective control valve.NOTE: The lights in the MARKERS switch can only function when the PLANT-TRANS switch is in “Plant” and the MARKER MODE switch in “Auto” or “Man”. On 24 Row machines, the WINGLET switch must be in the middle position for the marker lights to function.
A—MARKERS switch controls individual marker use when MARKER MODE switch is in “Man” position.
B—MARKER MODE switch allows manual or automatic alternation of markers.
C—CLUTCH DISENGAGE switch disengages a drive on either half of machine, for planting point rows.
D—PLANT-TRANS switch allows machine to be raised or lowered without operating any switches when in “Plant” position. When in “Trans” position, it allows machine to fold and unfold, raise, and lower wing wheels and center wheels.
E—WING WHEELS-FOLD switch is used to fold and unfold or extend and retract wing wheels.
F—24 Row Machines Only:TANK LOW WARNING LIGHT-WINGLETS switch is used to switch from right-hand or left-hand winglet. This switch also has a tank low warning light which comes on when either CCS tank is low on seed.
F—On 12 and 16 Row Machines: Tank low warning light comes on when either CCS tank is low on seed.
G—If equipped—DRAWBAR HITCH-MARKER switch alternates SCV control to either drawbar hitch or independent markers.
|
OUO6435,0001F42-19-20131018 |
