Tank Level Sensors

A49868-UN-12AUG02

A78931-UN-21OCT13

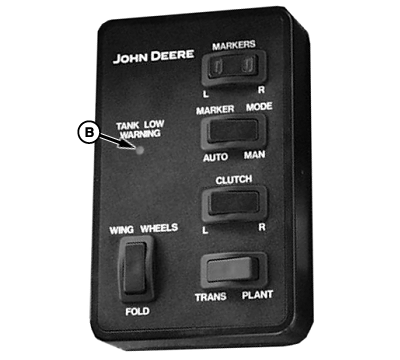

12 and 16 Row

A62742-UN-26JUN08

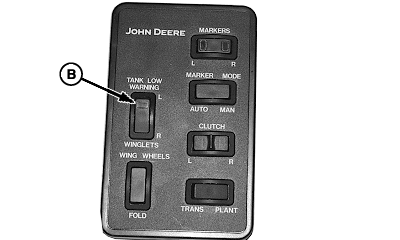

24 Row

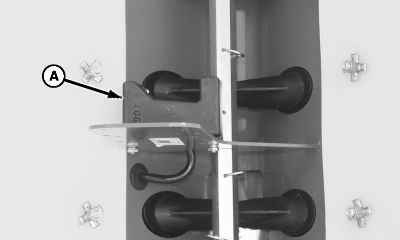

A - Tank Level Sensor

B - Tank Low Warning Light

IMPORTANT: Clean tank level sensors before filling CCS tanks. Use a “brush” to clean seed level sensor.

NOTE: Tank level sensor is factory installed at the lowest setting. Sensor can be moved higher up on bracket to receive an earlier warning.

When the sensor is exposed in either tank, tank low warning light (B) on the frame control console illuminates.
