Install 24 Row Service Locks

CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Service locks are not used as transport locks.

  1. A49943
    A49943-UN-21AUG02

    Main Frame Service Lock - Storage Position

    A53594
    A53594-UN-08JAN04

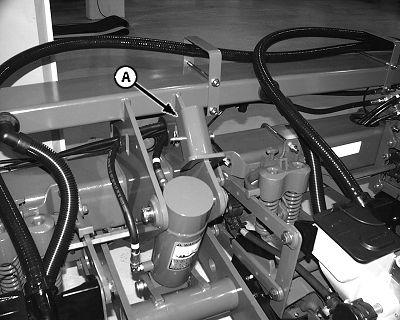

    Wing Wheel Service Lock - Storage Position

    A - Service Locks

    Remove service locks (A) from storage positions. Wing wheel locks are stored on top of wing wheel frame. Main frame locks are stored on the CCS ladder frame rails.


  2. IMPORTANT: Avoid machine damage. Tab (A) on service lock must be on top side against cylinder.

    A53401
    A53401-UN-01DEC03

    Main Frame Service Locks

    A - Tab

    Install service locks onto both outer main frame wheel cylinders and outer wing wheel cylinders. Install pin and spring pin to hold in place.


  3. A52402
    A52402-UN-08JUL03

    Drawbar Service Lock Storage Location

    A - Service Lock

    When servicing machines with drawbar hitch, either lower drawbar completely or raise drawbar completely and install service lock (A).

OUO6435,0001F65-19-20090512
