Check Hydraulic Air Compressor Oil

CAUTION:

TS230
TS230-UN-24MAY89

A72545
A72545-UN-14SEP11

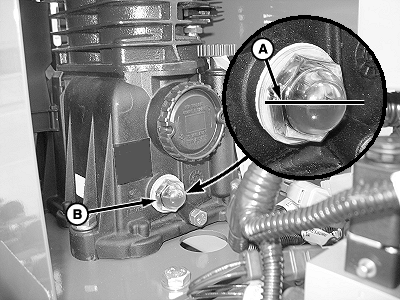

A - Middle

B - Sight Glass

Avoid injury. Deactivate SCVs, turn off tractor, and place tractor in park before servicing.

NOTE: Park on level surface.

Item Measurement Specification

Check Oil Level Interval Daily during use. Beginning of season.

The proper oil level is in the middle (A) of the sight glass (B). Add oil as necessary. (See Fill Or Change Hydraulic Air Compressor Oil in this section.)
