Fill or Change Hydraulic Air Compressor Oil

CAUTION:

TS230
TS230-UN-24MAY89

Avoid injury. Deactivate SCVs, turn off tractor, and place tractor in park before servicing.

IMPORTANT: Use non-detergent 30W synthetic air-compressor oil ISO 100 (John Deere™ TY27029 or equivalent).

NOTE: Park on level surface.

To aid filling, use a funnel.


Fill Compressor with Oil

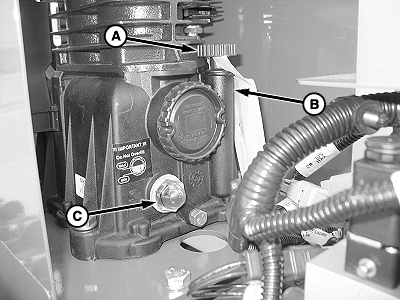

  1. A72546
    A72546-UN-14SEP11

    A - Cap

    B - Reservoir

    C - Sight Glass

    Remove cap (A).


  2. Add oil to reservoir (B) until oil is visible in the middle of the sight glass (C).

  3. Reinstall cap (A).


Change the Compressor Oil

ItemMeasurementSpecification
Compressor Reservoir Capacity0.5 L (16.6 oz.)

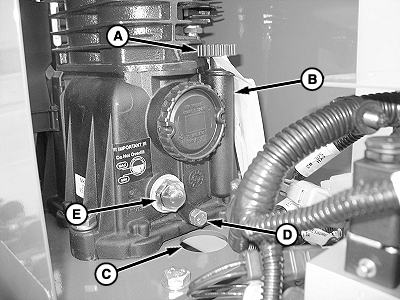

  1. A72547
    A72547-UN-14SEP11

    A - Cap

    B - Reservoir

    C - Drain Hole

    D - Drain Plug

    E - Sight Glass

    Remove cap (A) to help vent reservoir (B) while draining.


  2. Place container under drain hole (C).

  3. Remove and retain drain plug (D)

  4. Install previously removed drain plug (D)

  5. Add specified quantity of oil to reservoir (B) until oil is visible in the middle of the sight glass (E).

  6. Reinstall cap (A).

John Deere is a trademark of Deere & Company

WP29706,00002F2-19-20140826
