Liquid Fertilizer Rate Charts For Single Disk Injection Openers
See following table to match nozzle number on rate chart to number stamped on nozzle. For additional nozzles, see your John Deere dealer.
NOTE: Nozzle number can be found on side of nozzle.
|
Single Disk Injection Nozzle Reference Chart |
|
|---|---|
|
Nozzle Number |
Rate Chart Number |
|
00015 |
1.5 |
|
00025 |
2.5 |
|
0005 |
5 |
|
0008 |
8 |
|
0012 |
12 |

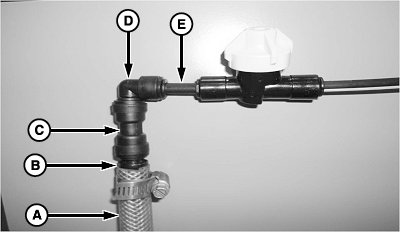

A73214-UN-28OCT11
A - 1/2 in. Reinforced Hose
B - 1/2 in. Barb to 3/8 in. Stem Reducer
C - 3/8 in. to 5/16 in. Reducing Coupler
D - 5/16 in. Stem to 5/16 in. Tube, 90 Degree Fitting
E - 2 in. Piece of 5/16 in. or 8 mm Tube
The in-line orifice should be removed when utilizing a single-disk injection opener. The tubing going to the opener is then inserted into the check valve using fittings described in picture.
A50571-UN-07OCT02
A - Reference Chart
Reference the following rate charts for correct nozzle number to be used for the desired application rate. Chart decals (A) are also located on machine. Graphic is used only as example of location.|
WP29706,000035D-19-20131104 |
