Fold Machine

CAUTION: Verify everyone is clear of the machine.

Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

IMPORTANT: Verify hitch stands are in the raised position. (See Attach and Detach sections of this manual.)

A53535
A53535-UN-19DEC03

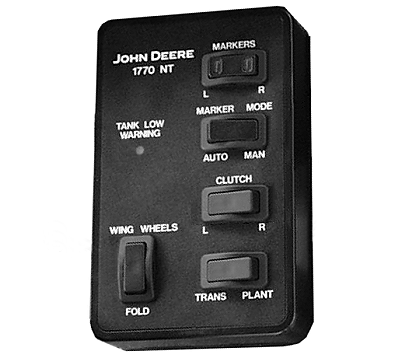

12 and 16 Row Frame Control

A52965
A52965-UN-30SEP03

24 Row Frame Control

A52390
A52390-UN-03JUL03

16 and 24 Row Drawbar Hitch Control Console

Use firm, level ground when possible to make folding easier. Tractor transmission must be in “Neutral” to allow the tractor to roll slightly when folding.

  1. Press the PLANT—TRANS switch to “Plant”.

    24 Row Only:

    1. NOTE: Marker automatically raises when raising designated winglet.

      Place WINGLET switch in “L” position to control left winglet or “R” position to control right winglet.

    2. Activate marker SCV and raise both winglets.

  2. IMPORTANT: Avoid damage during folding. If wheel cylinders are out of phase, lower machine to cycle hydraulics.

    Raise machine.

  3. Place tractor transmission in “Neutral”.

  4. IMPORTANT: Do not fully raise hitch while folding or structural damage to machine may result.

    Hitch must be level when wing-wheels are raised.

    TWO-POINT HITCH: Raise tractor rockshaft until hitch is level (approximately half-raised position).

    DRAWBAR HITCH: With MARKER—HITCH switch in “Hitch” position on drawbar hitch control console, activate marker SCV to raise hitch until level (approximately half-raised position).

  5. Press the PLANT—TRANS switch to “Trans” position.

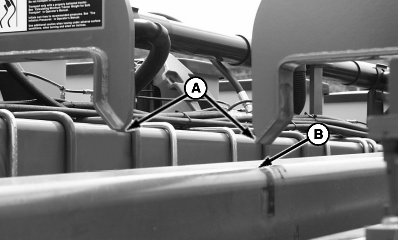

  6. IMPORTANT: Avoid machine damage. Adjust hitch height to prevent contact between latch hooks (A) and hitch tube (B).

    A48974
    A48974-UN-28MAR02

    A - Latch Hooks

    B - Hitch Tube

    Press and hold WING WHEEL—FOLD switch in the “Fold” position and activate SCV I until machine is folded.


  7. Raise hitch to engage latch hooks. After wings are latched, fully raise hitch.

  8. Press and hold WING WHEEL—FOLD switch in the “Wing Wheel” position. Activate SCV to retract wing wheels (main frame wheel cylinders will extend).

  9. IMPORTANT: If the machine is stored in the folded transport position, some settling of the hydraulic system may occur. Install service locks on center two main frame wheels and lower machine onto service locks.

    A49947
    A49947-UN-21AUG02

    12 and 16 Row Service Lock - Storage Position

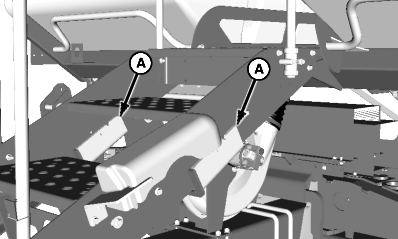

    A49943
    A49943-UN-21AUG02

    24 Row Service Lock - Storage Position

    A - Service Locks

    Remove service locks (A) from storage position. Main frame locks are stored on the CCS ladder frame rails.

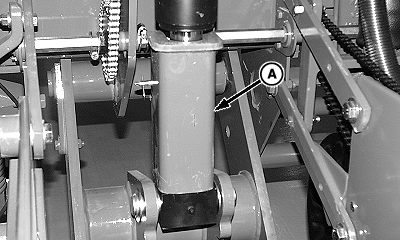

  10. IMPORTANT: Avoid machine damage. Flat plate on service lock must be on top side against cylinder.

    A53394
    A53394-UN-22DEC03

    Main Frame Service Locks

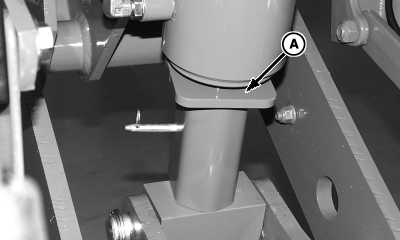

    A53401
    A53401-UN-01DEC03

    24 Row Service Locks

    A - Service Locks

    Install service locks (A) on both outer main frame wheel cylinders. Install pin and spring pin to hold in place.


  11. IMPORTANT: Do not transport when machine is resting on the service locks. Raise machine to high lift (off the service locks) position before transport.

    Lower machine onto service locks. See LOWER OR RAISE MACHINE IN TRANSPORT POSITION FOR FILL OR SERVICE in this section.
