Inspect ExactEmerge ™ Meter Units
NOTE: If using seed treatments, remove any buildup occurring in bottom of hopper.

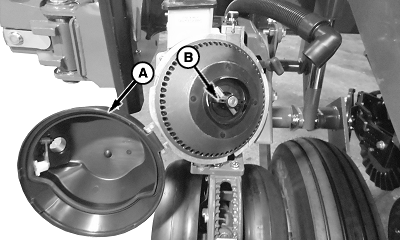

A77812-UN-27AUG13
A - Door
B - Meter Hub
To inspect meter, lay hopper on side and open door (A) to remove seed bowl. Turn meter hub (B) by hand to determine if mechanism is free of dirt, chaff, or other foreign material. Inspect brush for gaps, hub seal for cracks and vacuum seal for cracks and wear areas. If replacement is necessary, see Service And Adjustments section.|
