Lubrication Intervals

Lubrication Intervals
Item	Start of Season	As Required	10 Hours or Daily	25 Hours	50 Hours	100 Hours	200 Hours	End of Season
Fertilizer Shut Off Valves	●							●
Quick Fill Valve	●							●
Gauge Wheels			●
Hitch Pivot			●
Wing Flex Joints			●
Marker Pivot Pin			●
Single Disk Fertilizer Opener			●		●
24R Frame Mounted Coulter (if equipped)			●
12R and 16R Marker Pivot and Control Strap			●
Piston Pump Shafts (if equipped)			●
Piston Pump Crankcase			●
Tillage Support bracket			●
24R Fixed rate Pump Shafts (if equipped)			●
24R Fixed rate Pump Crankcase			●
24R Frame Fold Point			●
24R Wing Flex Point			●
24R Fold Cylinder			●
24R Marker			●
Main Frame Wheel Modules				●
Wing Wheel Modules				●
Main Frame Cylinders Rod Ends				●
Wing Wheel Bearings					●
Drawbar Hitch (if equipped)					●
Fold Joints						●
Unit Mounted Single-Disk Fertilizer Openers							●
Unit Mounted Coulter							●
Unit Mounted Row Cleaners					●		●
Unit Mounted Row Cleaner Adjustment Arm							●

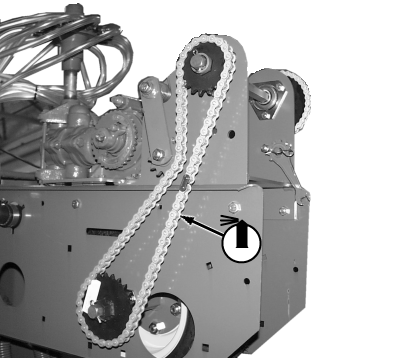

A47824-UN-25SEP01

12R and 16R Piston Pump Drive Chain (If Equipped)

A47825-UN-13SEP01

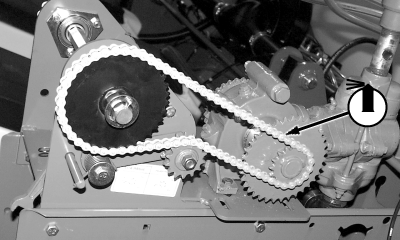

12R and 16R Piston Pump Chain (If Equipped)

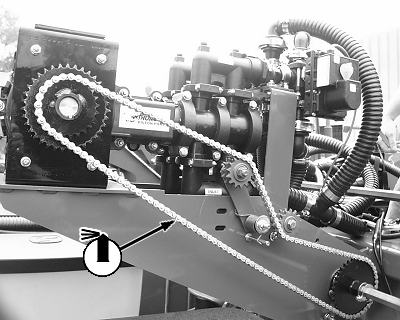

A53276-UN-31OCT03

24R Fertilizer Pump Drive Chain (If Equipped)

A38363-UN-16JUL08

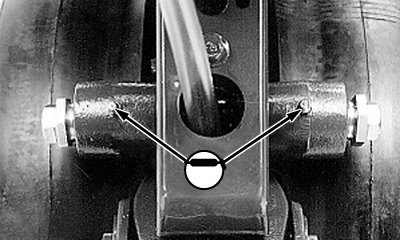

Gauge Wheels

A49905-UN-02JUN08

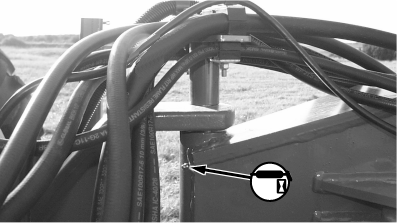

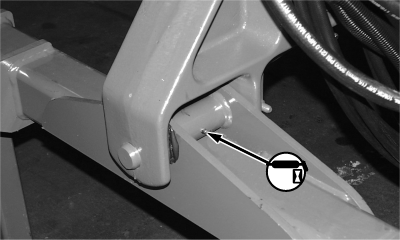

12R and 16R Hitch Pivot

A47831-UN-30MAY08

12R and 16R Hitch Pivot

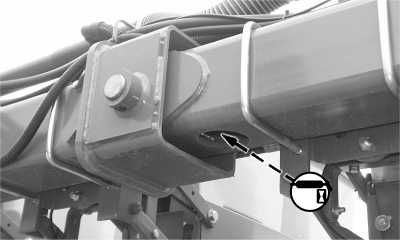

A47826-UN-30MAY08

12R and 16R Wing Flex Joints

A56253-UN-30MAY08

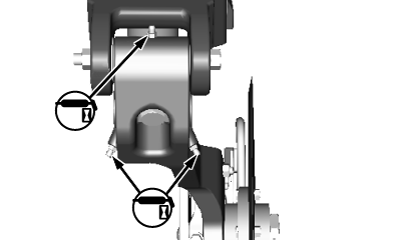

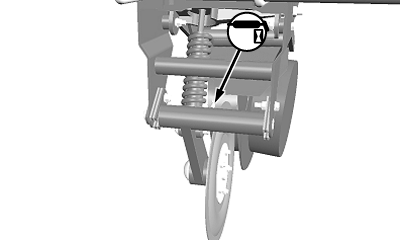

12R and 16R Frame Mounted Coulter (If Equipped)

A51065-UN-30MAY08

12R and 16R Frame Mounted Fertilizer Opener (If Equipped)

A56734-UN-02JUN08

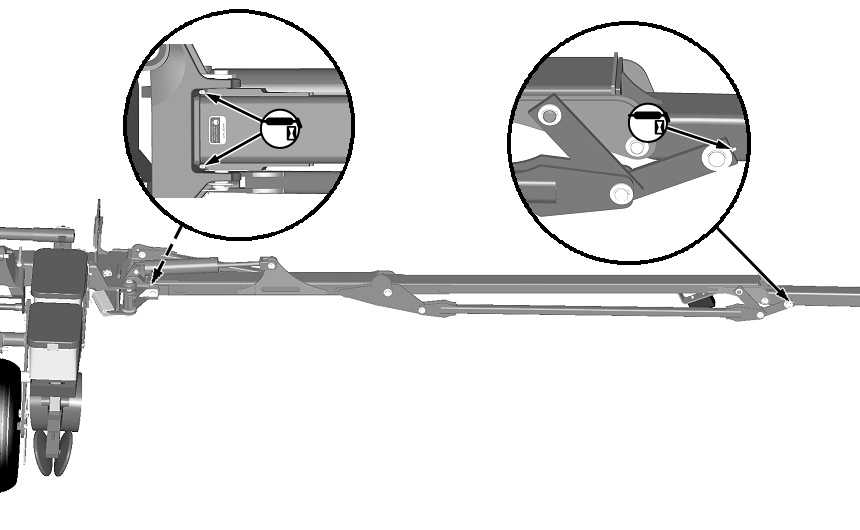

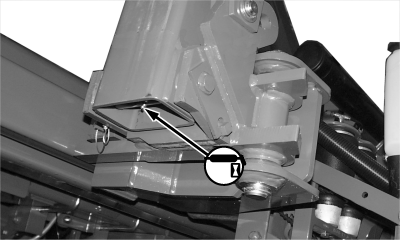

12R and 16R Marker Pivot and Control Strap

A47830-UN-30MAY08

Marker Pivot Pin

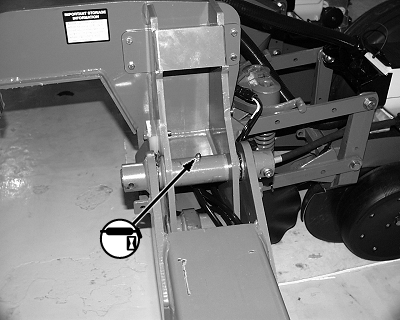

A52984-UN-01OCT03

24R Marker

A52985-UN-31OCT03

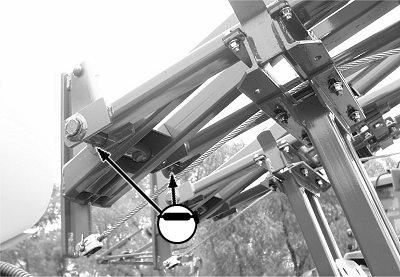

24R Marker

A53273-UN-31OCT03

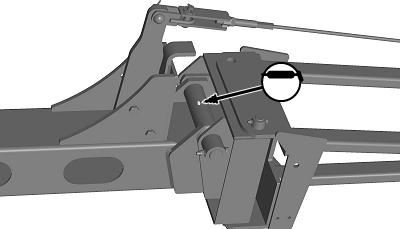

24R Marker

A35436-UN-16JUL08

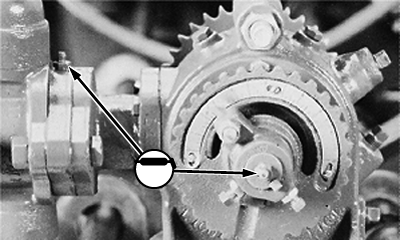

12R and 16R Piston Pump Shafts (If Equipped)

A35437-UN-21DEC92

12R and 16R Piston Pump (If Equipped)

A64650-UN-15MAY09

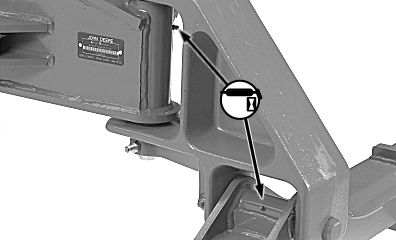

Hitch Pivot

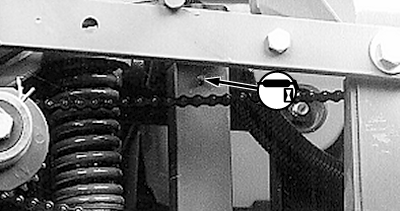

A47117-UN-30MAY08

24R Tillage Support Bracket (If Equipped)

A51065-UN-30MAY08

24R Frame Mounted Fertilizer Opener (If Equipped)

Cover weep hole (B) tightly with your finger. Pump grease into fitting (A) until the pressure pushes the grease past your finger. Repeat on other pump.

A53468-UN-10DEC03

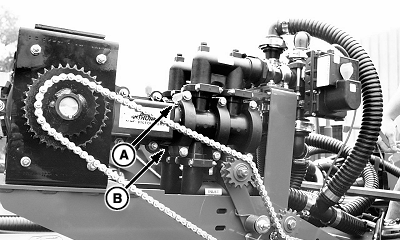

24R Fixed Rate Pump Shafts (if equipped)

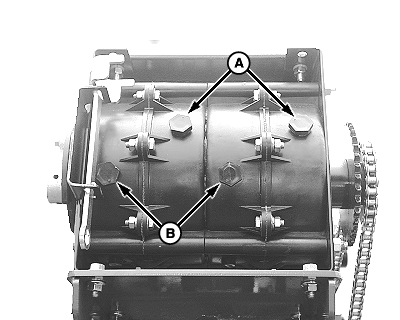

Fixed Rate Pumps (If Equipped)

A53059-UN-10OCT03

A - Fill Plugs

B - Check Plugs

1. Lower machine into plant position before checking oil level.

2. Remove fill plugs (A) and check plugs (B) from both pump crankcases.

3. Fill EACH crankcase with SAE 30 TY22070 Torq-Gard Supreme™ engine oil or equivalent at fill ports until oil is level with check ports.

4. Install plugs.

A52980-UN-01OCT03

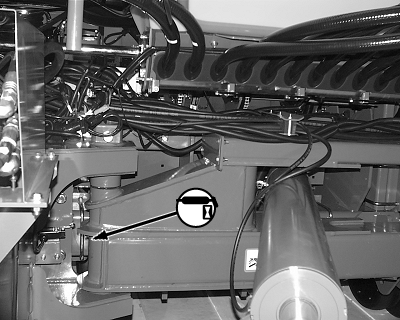

24R Frame Fold Point

A52983-UN-01OCT03

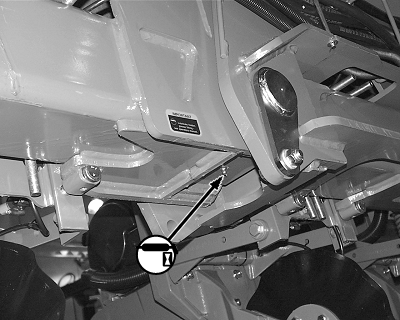

24R Wing Flex Point

A53357-UN-18NOV03

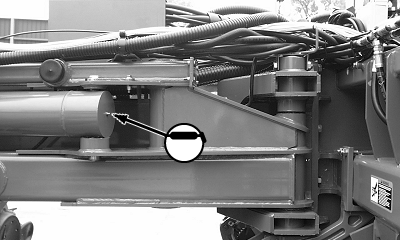

24R Fold Cylinder

A52986-UN-01OCT03

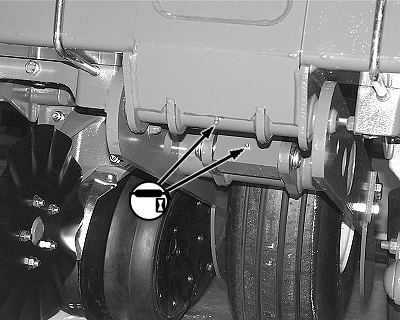

24R Wing Wheel Module

A52988-UN-01OCT03

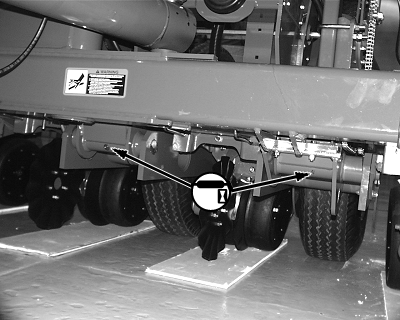

24R Main Frame Wheel Module

A83632-UN-12SEP14

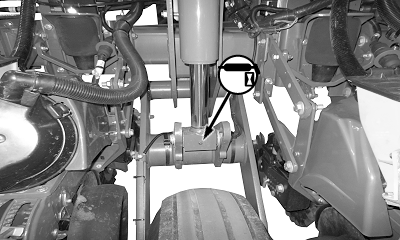

24R Main Frame Cylinder, Rod End

A47827-UN-30MAY08

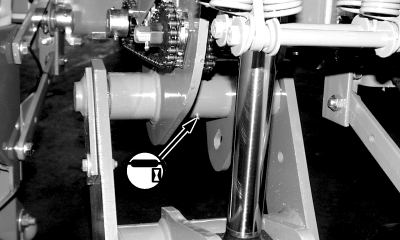

12R and 16R Main Frame Wheel Modules

A47891-UN-30MAY08

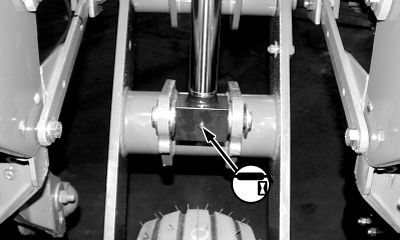

12R and 16R Main Frame Wheel Module

A47828-UN-30MAY08

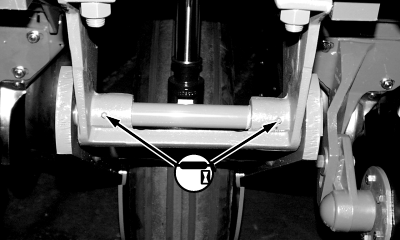

Wing-Wheel Modules, 16 Row

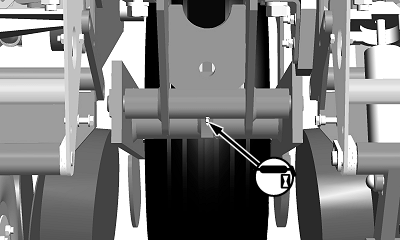

A53546-UN-02JUN08

Wing-Wheel Modules, 12 Row

A47238-UN-16JUL08

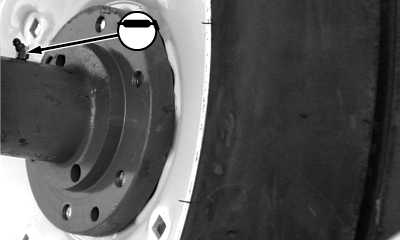

Wing Wheel Bearings

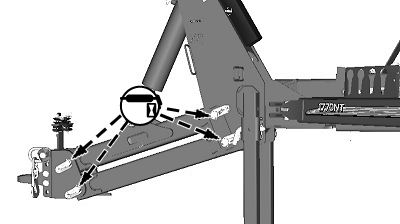

A52398-UN-07JUL03

Drawbar Hitch (If Equipped)

CAUTION:

A64844-UN-01JUN09

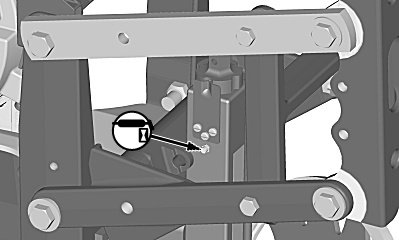

Unit Mounted Row Cleaner Adjustment Arm

A64845-UN-01JUN09

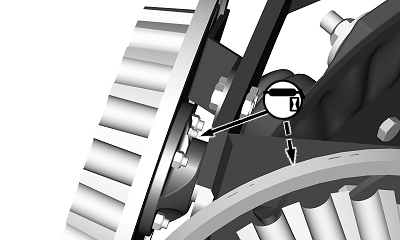

Row Cleaner for Unit Mounted Coulter

A64843-UN-01JUN09

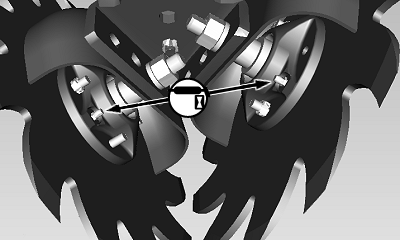

View From Under Unit Mounted Row Cleaner

A47829-UN-30MAY08

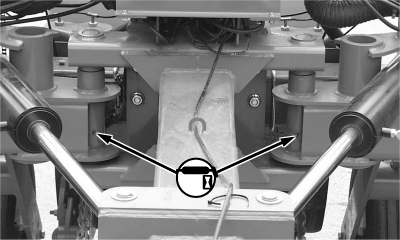

12R and 16R Fold Joints

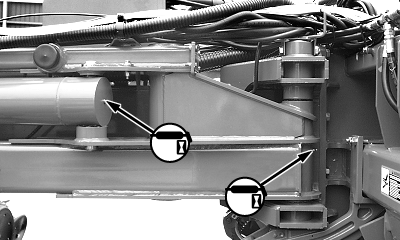

A53429-UN-02JUN08

24R Fold Joints

Row cleaner hubs have sealed bearings factory and regular lubrication is not required. Add grease to hub grease fittings annually or every 200 hours to keep dust away from bearing seal. Add grease slowly until slight resistance is felt or a small amount of grease comes out between hub and blade. If a non-sealed replacement bearing is installed, grease row cleaner hubs at a 50 hour interval.

A51069-UN-02JUN08

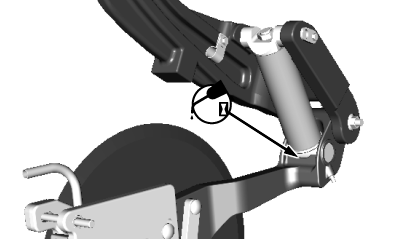

Single-Disk Fertilizer Opener (If Equipped)

A46093-UN-11APR00

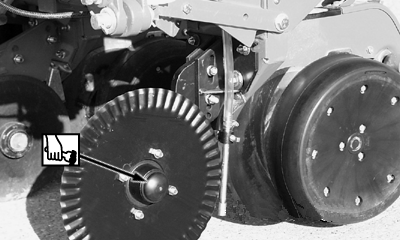

Unit Mounted Single-Disk Fertilizer Opener (If Equipped)

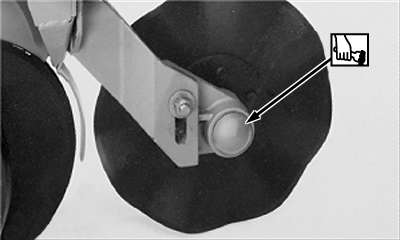

A29983-UN-16JUL08

Unit Mounted Coulter

A53424-UN-02DEC03

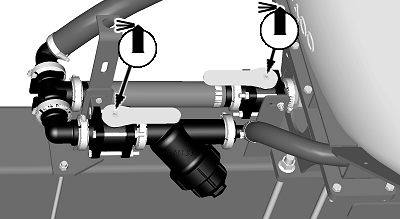

Fertilizer Shut Off Valves

A76565-UN-31OCT12

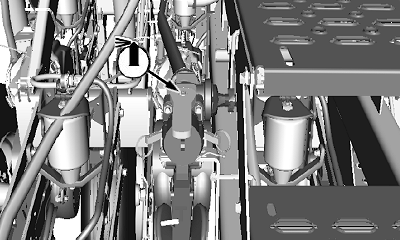

Quick Fill Valve
