Replace or Clean BrushBelt ™ Cartridge Components

1. NOTE: Periodically clean the seed sensor area inside BrushBelt ™. Dusty conditions or heavily treated seed cause an excessive buildup of dust and seed treatment inside the BrushBelt ™ which blocks the seed sensor. When seed sensor becomes blocked, false low population counts or false low limit warnings appear.

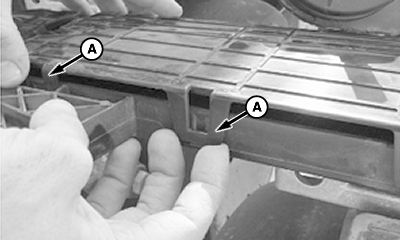

   A77772-UN-30APR13


   A79835-UN-22JAN14

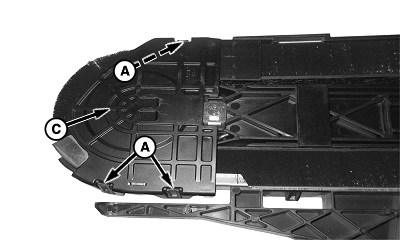

   A79836-UN-22JAN14

   A - Tabs

   B - Upper Cartridge Cover

   C - Lower Cartridge Cover

   Remove BrushBelt™ delivery cartridge. (See Install And Remove BrushBelt ™ Delivery Cartridge in previous section.)

---

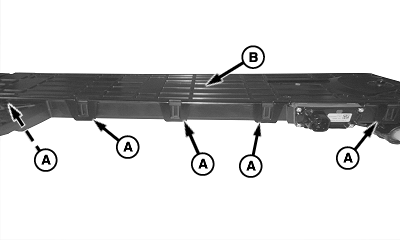

2. Pull back tabs (A) to remove upper cartridge cover (B) on BrushBelt ™.

3. Pull back tabs (A) to remove lower cartridge cover (C) on BrushBelt ™.

4.

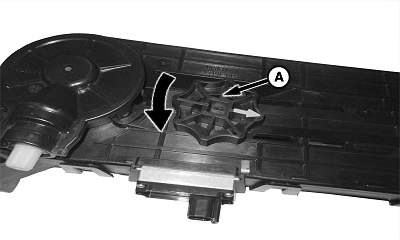

   A79872-UN-22JAN14

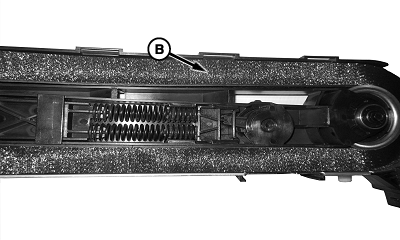

   A79896-UN-22JAN14


   A82226-UN-09APR14

   A - BrushBelt ™ Tensioner

   B - BrushBelt ™

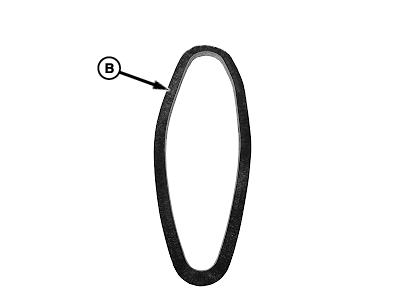

   Turn BrushBelt ™ tensioner (A) counterclockwise to remove spring tension. Remove BrushBelt ™ (B) from cartridge.

---




5. IMPORTANT: Do not plant again until all interior seed belt surfaces are dry.

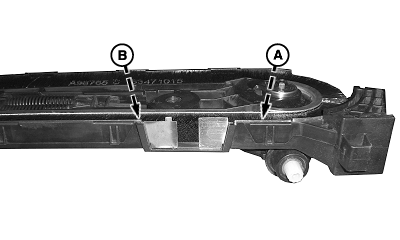

   IMPORTANT: To avoid false readings from seed sensors in the BrushBelt ™ cartridge, center wear liner tab must be inserted in the seed sensor slot as shown.

   NOTE: If moisture enters the seed belt during a rain or when machine is washed along with dust in the seed belt becomes mud.

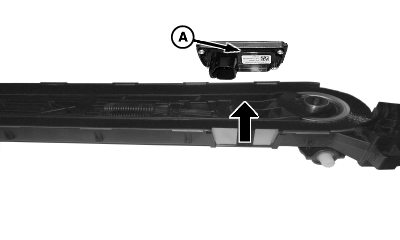

   A79897-UN-22JAN14


   A79622-UN-13DEC13


   A82261-UN-09APR14

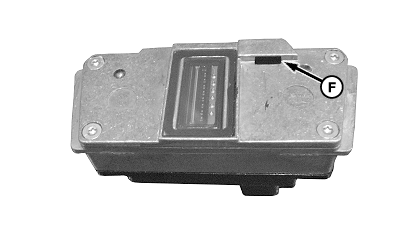

   A82262-UN-09APR14

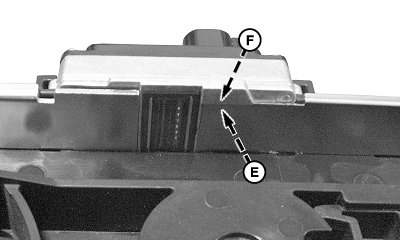

   A82263-UN-09APR14

   A - Seed Sensor

   B - Screws (4 used)

   C - Sensor Cover

   D - Gasket

   E - Center Wear Liner Tab

   F - Seed Sensor Slot

   Clean area for seed sensor (A). If moisture is present or dry residue is difficult to remove with a dry brush, use mild detergent and water with brush. Seed belt surfaces must dry before use.

---

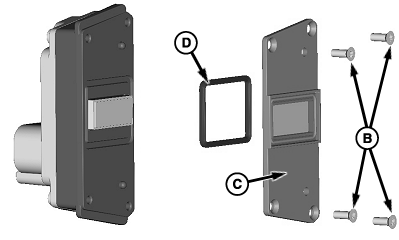

6. Replace seed sensor as needed with following steps:

   • Slide seed sensor from BrushBelt ™ cartridge as shown.
   • Remove and retain screws (B) from sensor.
   • Remove sensor cover (C) from sensor.
   • Remove and retain gasket (D) from inside sensor. Replace gasket as needed.
   • Install gasket and sensor cover with screws.

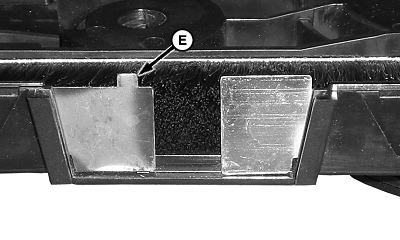

   • Install center wear liner tab (E) in the seed sensor slot (F) as shown, when sliding seed sensor back into BrushBelt ™ cartridge.



7.
   A79899-UN-04FEB14


   A79900-UN-04FEB14

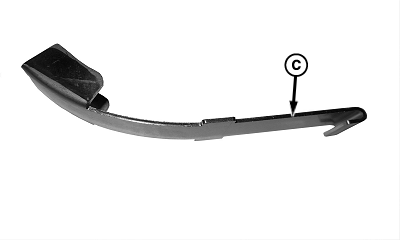

   A79901-UN-04FEB14


   A79898-UN-04FEB14


   A82264-UN-09APR14


   A79903-UN-04FEB14

   A - Upper Wear Liner

   B - Center Wear Liner

   C - Lower Wear Liner

   D - Wear Or Damage

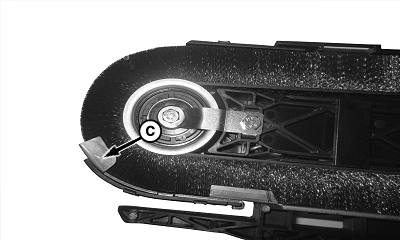

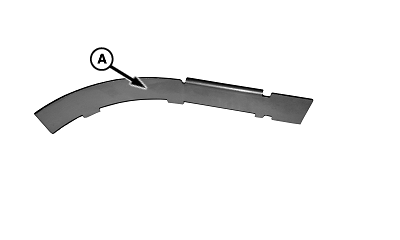

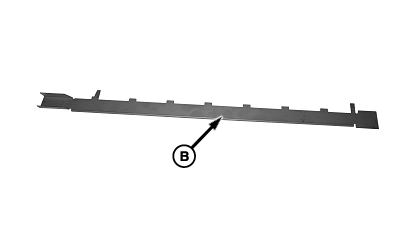

   Locate upper wear liner (A), center wear liner (B), and lower wear liner (C) on the BrushBelt ™ cartridge

---

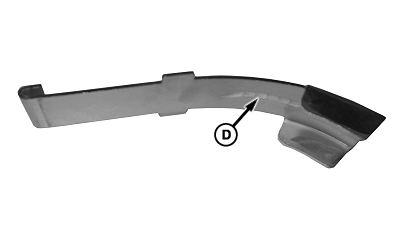

8. Check over wear liners for wear or damage (D).

9.
   A79955-UN-04FEB14

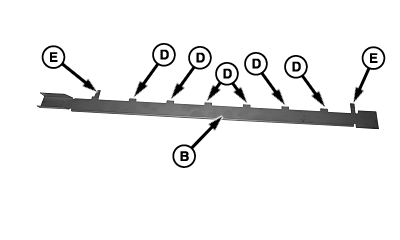

   A79956-UN-04FEB14

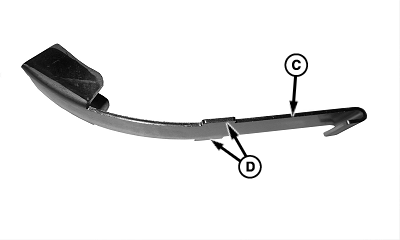

   A79957-UN-04FEB14


   A79907-UN-04FEB14


   A79906-UN-04FEB14

   A - Upper Wear Liner

   B - Center Wear Liner

   C - Lower Wear Liner

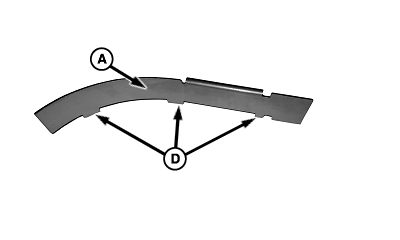

   D - Alignment Tabs

   E - Retainment Tabs

   Replace inserts using the following process:
   • Pull upper wear liner (A) or lower wear liner (C) to remove from cartridge position.

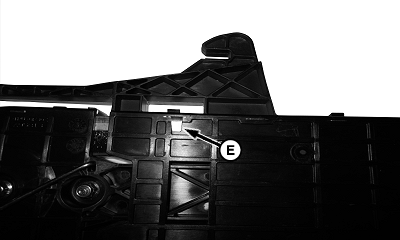

   • Straighten retainment tabs (E) on center wear liner (B).
   • To remove from cartridge position, pull center wear liner .

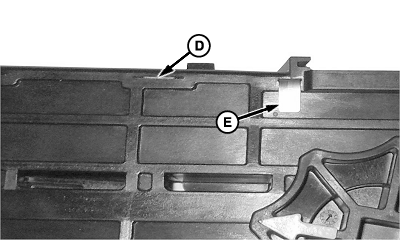

   • Press retainment tabs and alignment tabs (D) into cartridge to install center wear liner in position correctly.
   • Fold retainment tabs on center wear liner.
   • Press alignment tabs into cartridge to install upper or lower wear liners in position correctly as shown.



---




10.
    A77776-UN-13DEC13


    A77777-UN-13DEC13


    A77778-UN-13DEC13


    A79908-UN-04FEB14

    A - Wear or Damage

    B - Brush Reconditioner

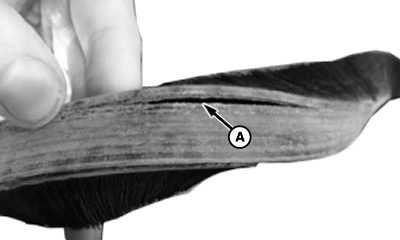

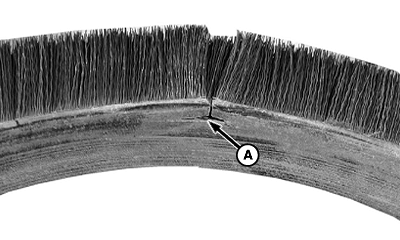

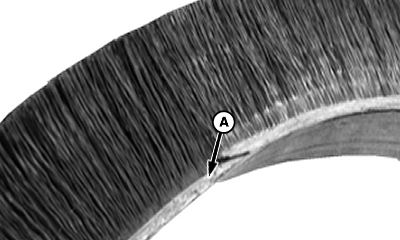

    Check BrushBelt ™ for wear and damage (A). Replace BrushBelt ™ as needed.

---

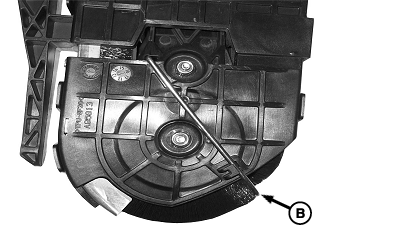

11. Check brush reconditioner (B) for damage. Replace reconditioner as needed.

12. Reinstall BrushBelt ™ into cartridge.

13. Reinstall upper and lower cartridge covers.

14. Reinstall BrushBelt ™ delivery cartridge. (See Install And Remove BrushBelt ™ Delivery Cartridge in previous section.)
