Remove Seed Bowl

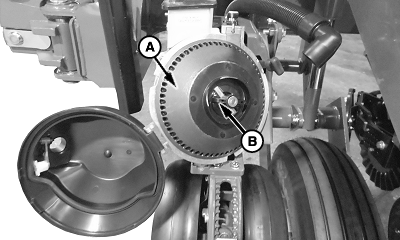

  1. A78022
    A78022-UN-27AUG13

    A - Seed Bowl

    B - Spindle Handle

    Open vacuum meter. (See Accessing the Vacuum Meter in this section.)


  2. Rotate spindle handle (B) until it aligns with slots in seed bowl (A).

  3. Pull seed bowl from spindle.

WP29706,0000409-19-20141013
