Install Seed Bowl

1.

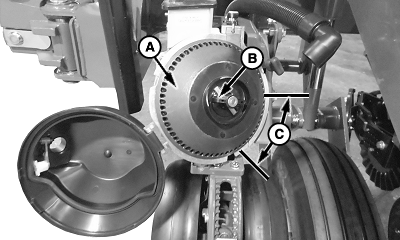

   A78024-UN-27AUG13

   A - Seed Bowl

   B - Hub Handle

   C - Section

   Open vacuum meter.

---




2. Fit seed bowl (A) into housing. Hold seed bowl stationary and rotate hub handle (B) into locked position.

3. Inspect hub adjustment. See Adjust Meter Hub Height in this section if the following conditions are not met.

   □  Verify that the seed bowl (A) continues to rotate approximately a quarter revolution after hub is spun rapidly by hand and quickly released.

   □  Verify that there is light contact between bowl and meter housing in section (C) as bowl is rotated.

   □  Verify that no seed loss occurs through any gap in section (C) as bowl is rotated.
