Removing From Storage

A53394
A53394-UN-22DEC03

12/16 Row Service Locks

A53401
A53401-UN-01DEC03

24 Row Service Locks

A - Service Locks

If machine is in the folded transport position and service locks were installed, raise machine off locks.

Remove service locks (A) from both outer main frame wheel cylinders.

A49947
A49947-UN-21AUG02

12/16 Row - Storage Position

A49943
A49943-UN-21AUG02

24 Row - Storage Position

A - Service Locks

Place main frame service locks (A) in the storage position. Locks are stored on the CCS ladder frame rails.

A49949
A49949-UN-21AUG02

A - Plugs

B - Manifold Bell

Remove all plugs (A) from vacuum manifold bells (B)

Before using machine after it has been stored, inspect seed hoppers for cleanliness to be certain seed will flow from hoppers freely.

Thoroughly inspect machine for loose parts and adjust as necessary.

IMPORTANT: Avoid spraying water on the EPG fuse box. Direct spray from high-pressure washers damages electrical components.

A78702
A78702-UN-27AUG13

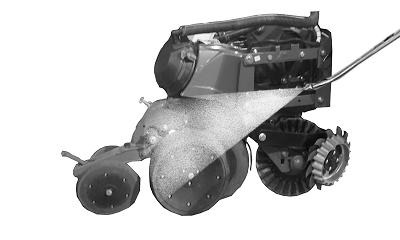

Clean any dirt or grease accumulated on moving parts, gears, and chains before operating machine. Cleaning prevents abrasive action which causes excessive wear.

IMPORTANT: Direct spray from high-pressure washers damage electrical components, bearings, hoses, and hoppers. Use caution, when power washing machine.

Adjust machine for planting conditions.

A53141
A53141-UN-04NOV03

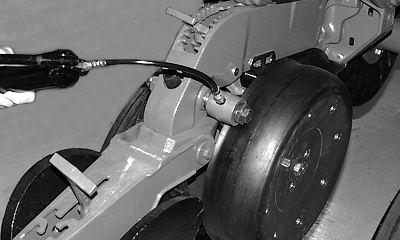

Lubricate planting units as outlined in the Lubrication section.

WP29706,0000543-19-20140911
