Weighting Front End 24 Row

A50871-UN-05NOV02

To calculate the implement code for the planter, refer to the following chart. To determine the total implement code, add the implement code values for the optional equipment your planter is equipped with to the implement code value for the base machine.

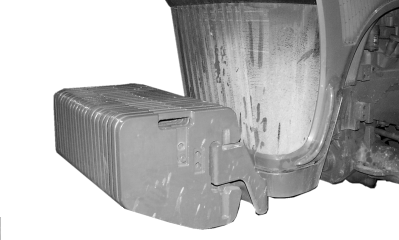

Install the proper amount of weight on the front of the tractor as recommended in the tractor operator's manual.

	Implement Code
Base Machine	8030 and 8R Series Tractors	Hitch Weight1
Twenty-Four Row 76 cm (30 in.) Central Commodity System	455	4 100 kg (9 000 lb.)
Markers
Tri-fold	52	450 kg (1 000 lb.)
Less Markers	0	0
Wing Frame Assemblies
Four 11R22.5 Load Range F High Flotation Tires	17	140 kg (300 lb.)
Row Unit Parallel Arms
Regular	0	0
Long	21	180 kg (400 lb.)
Liquid Tanks
Less Tank and Mounting Brackets	0	0
Insecticide Tank and Mounting Brackets	57	450 kg (1 000 lb.)
Fertilizer Pump, Delivery System, and Openers
Less Pump, Delivery System, and Openers	0	0
Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Fertilizer Openers	57	450 kg (1 000 lb.)
Piston Pump, Flow Divider with Hoses, Less Openers	0	0
Piston Pump, Less Delivery System, Less Openers	0	0
Variable Rate Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Openers	57	450 kg (1 000 lb.)
Variable Rate Piston Pump, Flow Divider with Hoses, Less Openers	0	0
Variable Rate Piston Pump, Less Delivery System, Less Openers	0	0

See your John Deere™ dealer for proper front-end weighting.
