Storing Machine

When planting is completed for one season, store the machine under cover with all parts in operating condition.

IMPORTANT: Avoid machine settling. Install service locks on frame wheel cylinders and lower machine onto service locks.

A49947
A49947-UN-21AUG02

12/16 Row - Storage Position

A49943
A49943-UN-21AUG02

24 Row - Storage Position

A - Service Locks

Remove main frame service locks (A) from storage position. Locks are stored on the CCS™ ladder frame rails.

IMPORTANT: Avoid machine damage. Flat plate on service lock must be on top side against cylinder.

A62051
A62051-UN-07MAY08

A - Service Lock

B - Pin

C - Spring Locking Pin

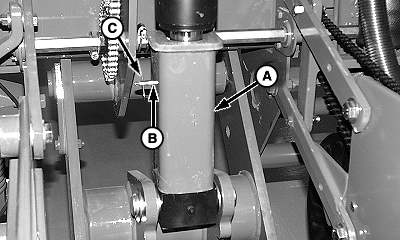

Raise machine and install service locks (A) as shown onto both outer main frame wheel cylinders. Install pin (B) and spring locking pin (C).

Lower machine onto service locks.

A49949
A49949-UN-21AUG02

A - Plugs

B - Manifold Bells

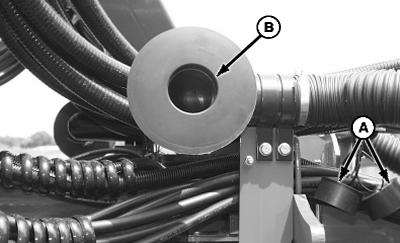

Install all plugs (A) into vacuum manifold bells (B).

A68112
A68112-UN-14JUL10

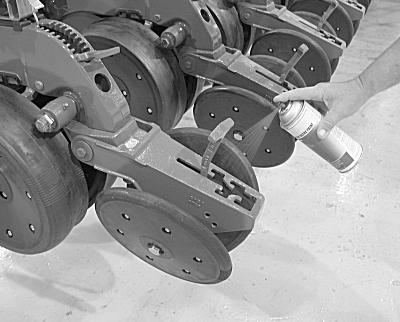

Paint all parts which are chipped or worn and require repainting.

IMPORTANT: Avoid damage to electrical components, bearings, hoses, and hoppers. Do not direct high-pressure washer spray directly on these parts.

Clean and wash machine thoroughly.

Lubricate the machine as outlined in the Lubrication section, and grease exposed cylinder rods.

Thoroughly lubricate chains with TY6350 John Deere Multipurpose Spray Lube.

Empty and clean seed hoppers.

Inspect the machine for worn, broken, or damaged parts. Replace parts as needed.

Store the machine in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

Relieve all spring tension on closing wheels by placing handle in long slot.

To prevent damage from freezing, thoroughly flush liquid herbicide system with clean water. Disconnect from tractor and completely drain all lines and components.

A83680
A83680-UN-12SEP14

A - Bowl

Remove seed bowls from meter. (See Inspect And Service ExactEmerge™ Seed Meter in Service section.)

Clean meter housing, meter chamber, and seed bowl with mild detergent and soft brush.

Spray bowls with graphite lubricant.

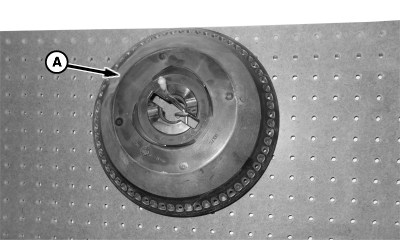

Store bowls (A) in shipping box or hang on wall.

IMPORTANT: Store seed bowls away from extreme heat or direct sunlight. Do not leave bowls in the meters during the off season. Do not store under heavy parts.

Clean air manifold system. (See Clean Vacuum System in the Service section.)

Check for hydraulic leaks.

Check and clean out manifolds.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.

A83681
A83681-UN-12SEP14

A - BrushBelt™

Ensure BrushBelt™ is clean and purged of all remaining seed. (See SeedStar™ 3 HP OM for purge instructions.)

BrushBelts can be stored in the planter during the off season. Remove tension from cartridge for extended storage periods.

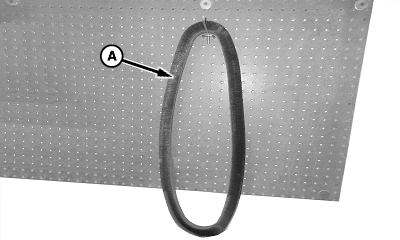

When removing BrushBelt™ for storage, clean and hang as shown for best results. (See Install And Remove BrushBelt™ Delivery Cartridge in Service and Adjustments section.)
