Low-Pressure Case Drain Connection
IMPORTANT: Avoid damage to fan motors, equip tractor with a low-pressure drain connection less than 172 kPa (1.72 bar) (25 psi). See Case Drain Connection Kits table.
IMPORTANT: Use the connection kits listed in table on John Deere tractors. If low-pressure drain connection kit is already installed, ensure that it matches what is listed on table.
A53392-UN-25NOV03

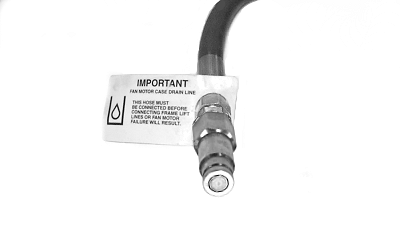

Flush Face Case Drain Hose Tip
Order one of the following kits for a John Deere tractor. For other tractors, see tractor dealer for a suitable connection kit.NOTE: John Deere Connection Kits include Installation Instructions.
|
Case Drain Connection Kits |
|
|---|---|
|
Tractor Model |
Kit Number |
|
7R Series |
RE327561 |
|
8000, 8000T, 8010, 8010T, 8020, 8020T, 8030, 8030T, 8R, and 8RT Series |
RE222721 |
|
9000, 9000T, 9010, 9010T, 9020, 9020T, 9030 and 9030T Series |
RE218665 |
|
9R and 9RT Series |
RE299261 |
|
WP29706,00007F0-19-20140923 |
