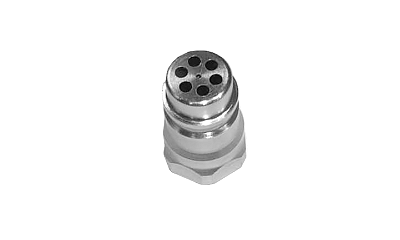

Vacuum Hydraulic Motor and Electric Power Generation (EPG) Return Coupler

A53457
A53457-UN-02MAR04

All machines are equipped with a special return coupler on the Electric Power Generation Motor return hoses.

Return couplers are equipped with check valves to eliminate the possibility of turning the motors backwards.

Relieve pressure when shutting off hydraulic motors. Place SCV in “Float” position and allow the motors to stop gradually.

WP29706,00007F1-19-20140923
