Adjust John Blue™ Fixed Rate Pump Setting Number

1.
   A35432-UN-21DEC92

   A - Adjustment Tool

   B - Pin

   C - Scale Ring

   D - Nut

   E - Pointer

   F - Gauge

   Use rate chart for determining PUMP SETTING number for desired application rate.

---




2. Install adjustment tool (A) on pump pin (B) aligning teeth with scale ring (C).

3. Loosen nut (D) and rotate scale ring until pointer (E) is aligned with pump setting number on gauge (F). Tighten nut to specification.

   Item	Measurement	Specification
   Nut	Torque	25 N·m (18 lb-ft)

4.

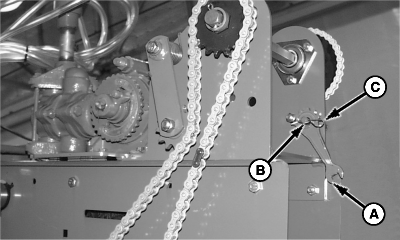

   A47955-UN-12SEP01

   A - Adjustment Tool

   B - Pin

   C - Clip Pin

   Store adjustment tool (A) on pin (B) for the pump mounting bracket. Attach tool with clip pin (C).

---
