CCS™ Fan and Vacuum Motor (Case) Drain Requirements
IMPORTANT: Avoid fan motor damage. Ensure that tractor case-drain has less than 172 kPa (1.72 bar) (25 psi).

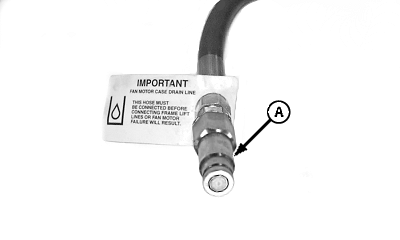

CCS™ fan and vacuum motor case drain hose (A) must be attached to low-pressure drain connection before any other hose connection.
A53393-UN-25NOV03
A - Motor Seal (Case) Drain Hose
The hydraulic motors used on the CCS™ fan and vacuum motor are low flow, high-pressure motors. The motors are designed to operate on a closed-center hydraulic system. Connecting the CCS™ fan or the vacuum motor to an open-center system is not recommended. See your John Deere™ dealer for more information.|
CCS is a trademark of Deere & Company John Deere is a trademark of Deere & Company |
WP29706,00007FE-19-20140923 |
