Warning Screens for SeedStar™ XP

A68149
A68149-UN-13JUL10

PM2 Sensor voltage supply #1 out of range.

5VDC sensor supply voltage on PM2 out of range high or low. Check wire harness and connectors for damage.

A68151
A68151-UN-13JUL10

Left CAN bus subnet address circuit error. Check electrical connections.

Check wire harness and connectors for damage. See your John Deere™ dealer.

A68152
A68152-UN-13JUL10

Right CAN bus subnet address circuit error. Check electric connections.

Check wire harness and connectors for damage. See your John Deere™ dealer.

A68153
A68153-UN-13JUL10

Communication error. Seed monitor is offline.

PM2 controller is online but does not detect PM1 controller on the CAN Bus. Cycle key switch power and wait for system to load. See your John Deere™ dealer.

A68154
A68154-UN-13JUL10

Communication error. Seed monitor online but not responding to CAN bus messages.

PM2 detects PM1 controller on the CAN Bus, but PM1 controller is not responding. Cycle key switch power and wait for system to load. See your John Deere™ dealer.

A68155
A68155-UN-13JUL10

9 pin connector voltage out of range. Check pins 1 and 3.

Voltage across pin 1 (ground) and pin 3 (12VDC) of 9 pin ISO connector is out of range high or low. Check wire harness and battery connections.

A68156
A68156-UN-13JUL10

9 pin connector voltage not detected. Check pins 1 and 3.

No voltage is present across pin 1 (ground) and pin 3 (12VDC) of 9 pin ISO connector. Refer to tractor operator’s manual and check fuses.

A68157
A68157-UN-13JUL10

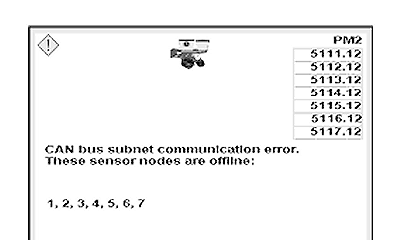

CAN bus subnet communication error. These sensor nodes are offline:

1,2,3,4,5,6,7

Sensor node controllers listed are offline. Check wire harness and connectors for damage. See your John Deere™ dealer.

A68158
A68158-UN-13JUL10

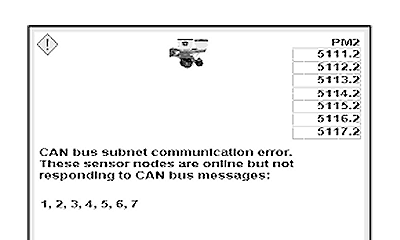

CAN bus subnet communication error. These sensor nodes are online but not responding to CAN bus messages:

1,2,3,4,5,6,7

Sensor node controllers listed are online, but not communicating with the PM2 controller. See your John Deere™ dealer.

A68159
A68159-UN-13JUL10

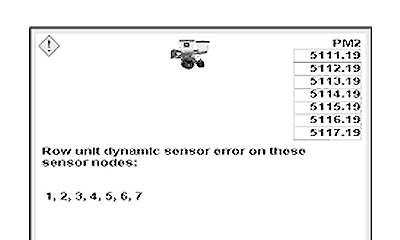

Row unit dynamic sensor error on these sensor nodes:

1,2,3,4,5,6,7

There is a problem with the dynamics sensor inside the sensor node controllers listed. See your John Deere™ dealer.

A68160
A68160-UN-13JUL10

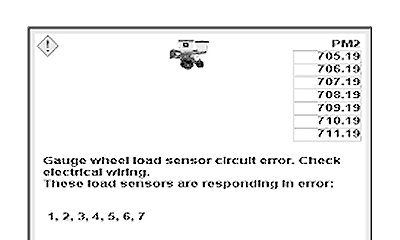

Gauge wheel load sensor circuit error. Check electrical wiring.

These load sensors are responding in error:

1,2,3,4,5,6,7

The sensor node controllers listed are detecting a problem with the gauge wheel load sensor. Check load sensor wire harness for damage.

A68161
A68161-UN-13JUL10

PM2 controller ECU voltage out of range. Check electrical wiring.

12 VDC power for PM2 controller out of range high or low. See your John Deere™ dealer.
