Depressurize Two Rank Pneumatic Down Force System

1. NOTE: Location and orientation of air reservoir varies based on planter model. Procedure is similar for all models.

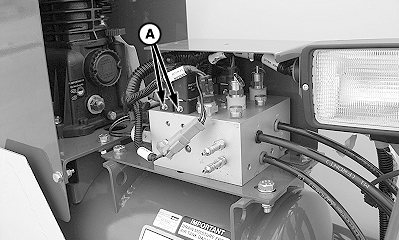

   A72713-UN-21SEP11

   A - Manual Override Button

   Lower planter to planting position.

---




2. On SeedStar™ monitor, reduce down force pressure to 66 N (15 lb.).

3. Press manual override button (A) to release residual air pressure from air spring circuit.

4.

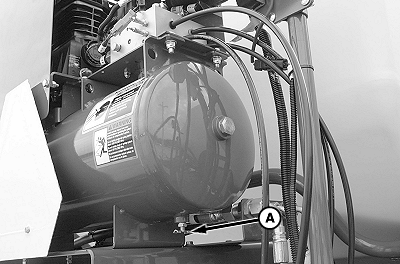

   A72714-UN-21SEP11

   A - Drain Valve

   Release reservoir air pressure by opening drain valve (A).

---
