Clean or Replace Electric Air Compressor Filter

1. IMPORTANT: Filter cleanliness is critical to maintain the performance and service life of the air compressor. Clean or replace the air filter element yearly or at the beginning of each season.

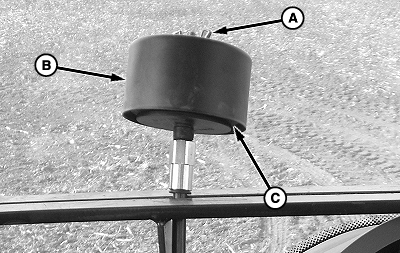

   A71682-UN-01JUN11

   A - Wing Nut and Seal Washer

   B - Weather Shield

   C - Filter

   Remove and retain wing nut and seal washer (A).

---




2. Remove weather shield (B) and filter element (C).

3. Wipe dust from filter base.

4. Replace filter and weather shield.

5. Reinstall seal washer, tighten wing nut.
