Planter Details

A59325-UN-19FEB07

Menu

A59551-UN-08MAR07

Planter Button

A67003-UN-30APR10

A - Planter Details Page Button

Select Menu >> Planter button.

When planter details page button (A) is selected the planters detail page is displayed.

A73036-UN-13OCT11

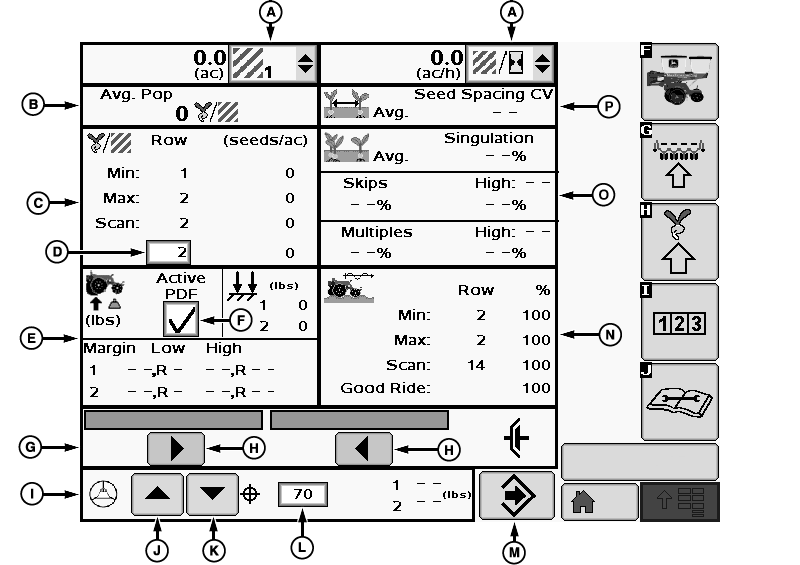

A - List Boxes

B - Average Population

C - Seed Population

D - Row Selection Input Box

E - Down Force (Active Down Force Shown)

F - Active PDF Check Box

G - Section Control

H - Section Control Buttons

I - Pneumatic Down Force Adjust

J - Step Increase Button

K - Step Decrease Button

L - Pneumatic Down Force Target Margin Input Box

M - Return Button

N - Ride Dynamics

O - Seed Singulation

P - Seed Spacing Coefficient of Variation

Planter Details page includes the following:

(A) List Boxes display the following information and options:

• Field area 0
• Field area 1
• Field area 2
• Area per hour
• Vacuum sensor readings
• Tractor speed

(B) Average Population displays the following information:

• Average population

(C) Seed Population displays the following information and options:

• Minimum row population
• Maximum row population
• Scan row population
• Row Selection Input Box

Row selection input box (D) allows operator to select an individual row to monitor population.

A73037-UN-13OCT11

Single Set-Point (Active Capable)

A73038-UN-13OCT11

Dual Set-Point

A73039-UN-13OCT11

Active Control (Single Rank)

A73040-UN-13OCT11

Active Control (Dual Rank)

E - Down Force Displays

• Total margin
• Low row margin
• High row margin
• Average down force margin

(F) Active PDF check box allows operator to enable or disable active down force (if equipped).

(G) Section Control displays the following information and options:

• Active rows planting.
• Row disabled.
• Manual Section Control buttons (H).

(H) Section Control buttons allow the operator to turn on and off row units manually as needed for headlands and water ways.

A72946-UN-06OCT11

Single Set-Point Down Force

A72947-UN-06OCT11

Dual Set-Point Down Force

A72949-UN-06OCT11

Single Rank Active Margin

A72948-UN-06OCT11

Dual Rank Active Margin

I - Pneumatic Down Force Adjust Displays

• Step increase button
• Step decrease button
• Pneumatic down force target input box
• Actual pneumatic down force output field

(J) Step increase button raises down force pressure by the amount setup in the step values input box. See INTEGRATED PNEUMATIC DOWN FORCE AIR PRESSURE SENSOR in the SeedStar™ 2 SETUP Basic Planter Configuration section.

(K) Step decrease button lowers down force pressure by the amount setup in the step values input box. See INTEGRATED PNEUMATIC DOWN FORCE AIR PRESSURE SENSOR in the SeedStar™ 2 SETUP Basic Planter Configuration section.

Pneumatic down force target margin input box (L) allows the operator to input a specific target pressure for the system to monitor.

(M) Return button returns operator to main planter screen.

(N) This area displays the following Ride Dynamics percentages:

• Minimum row good ride
• Maximum row good ride
• Scan row good ride
• Total planter good ride

(O) This area displays the following Seed Singulation percentages:

• Total singulation
• Total skips
• Row with highest skips
• Total multiples
• Row with highest multiples

(P) Seed Spacing Coefficient of Variation (CV) displays the following information:

• Average Coefficient of Variation value for the whole planter.

Screen Area Information

Avg. Pop - Average Population
Row - Row
Min: - Minimum
Max: - Maximum
Scan: - Scan
Active PDF - Active PDF
Low: - Low
High: - High
Avg. - Average
Seed Spacing CV - Seed Spacing CV
Singulation - Singulation
Skips - Skips
Multiples - Multiples
Good Ride: - Good Ride
