Check Hydraulic Air Compressor Oil

CAUTION: Deactivate SCV operating hydraulic compressor and turn tractor off before servicing.

NOTE: Check hydraulic air compressor oil daily during planting season, and at the beginning of each season.

A72545
A72545-UN-14SEP11

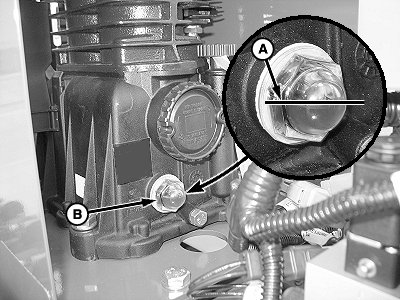

A - Middle

B - Sight Glass

Correct compressor oil level is at the middle (A) of the sight glass (B). Fill oil reservoir as necessary. (See FILL OR CHANGE HYDRAULIC AIR COMPRESSOR OIL in this section.)

OUO6064,00006FC-19-20120123
