Fill or Change Hydraulic Air Compressor Oil

CAUTION: Deactivate SCV operating hydraulic compressor and turn tractor off before servicing.

Fill Hydraulic Air Compressor Oil

1.

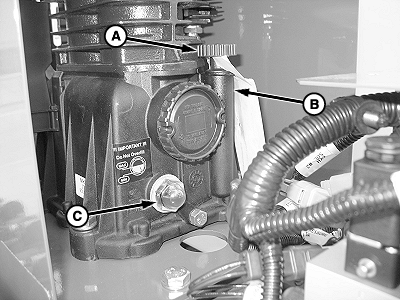

   A72546-UN-14SEP11

   A - Cap

   B - Reservoir

   C - Sight Glass

   Remove cap (A).

---




2. NOTE: Use a funnel to aid in adding compressor oil to reservoir.

   Add 30W non-detergent air compressor oil to reservoir (B) until oil is in the middle of the sight glass (C).

3. Reinstall cap (A).

Change Hydraulic Air Compressor Oil

1.

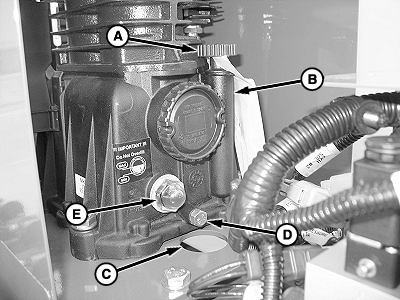

   A72547-UN-14SEP11

   A - Cap

   B - Reservoir

   C - Drain Hole

   D - Drain Plug

   E - Sight Glass

   Remove cap (A) to help vent reservoir (B) while draining.

---




2. Place container under drain hole (C).

3. Remove drain plug (D) and allow oil to drain.

4. Install previously removed drain plug (D).

5. NOTE: Use a funnel to aid in adding compressor oil to reservoir.

   Add 30W non-detergent air compressor oil to reservoir (B) until oil is in the middle of the sight glass (E).

6. Reinstall cap (A).
